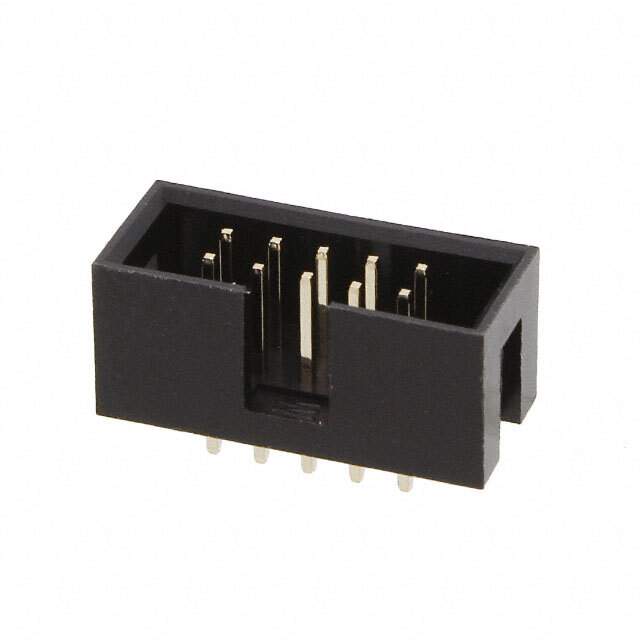

3020-10-0100-00 Real Image
Same model may have multiple batches, images only for reference.

3020-10-0100-00

Part No 3020-10-0100-00
Manufacturer CNC Tech
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet
3020-10-0100-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr CNC Tech
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.354" (9.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
Features Keying Slot
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 250VAC/DC
Base Product Number 3020-10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1175-1609,3020-10-0100-00-ND
Standard Package 130
Win Source Part Number 1228106-3020-10-0100-00
Ultra Librarian 3D Model Ultra Librarian 3020-10-0100-00 CAD Model

Description

The CNC Tech 3020-10 board to cable/wire male pin header is a 10-position connector with a pitch of 0.100" (2.54mm).

  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Current Rating: 3A
  • Voltage Rating: 250VAC/DC
  • Design: Shrouded 4-wall
  • Termination: Through-hole
  • Contact Material: Brass
  • Contact Plating: Gold
  • Contact Finish Thickness: Flash
  • Insulation Material: Polyamide (PA6T), nylon 6T; polyamide (PA9T), nylon 9T
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 105°C
