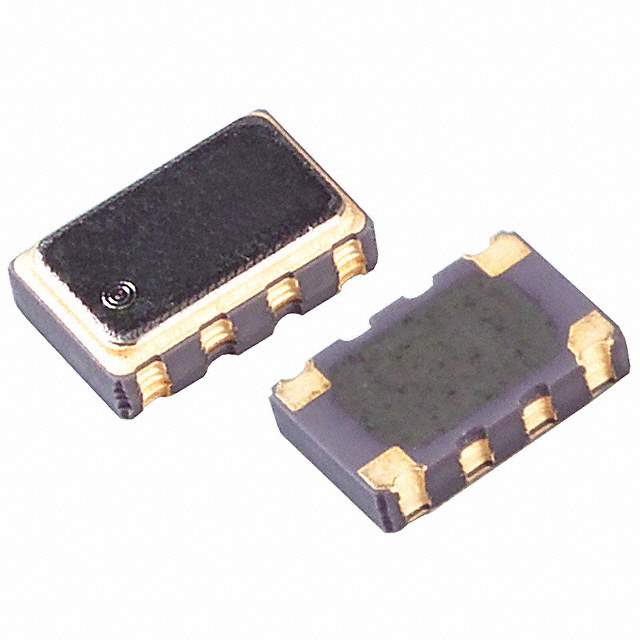

CSX532T16.800M2-UT10 Real Image
Same model may have multiple batches, images only for reference.

CSX532T16.800M2-UT10

Part No CSX532T16.800M2-UT10
Manufacturer Citizen Finedevice Co Ltd
Catalog Oscillators
Description XTAL OSC TCXO 16.8000MHZ SMD / 16.8 MHz TCXO Oscillator 2.4V ~ 3V 4-SMD, No Lead
Datasheet
CSX532T16.800M2-UT10 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Citizen Finedevice Co Ltd
Series CSX532T
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type TCXO
Frequency 16.8 MHz
Voltage - Supply 2.4V ~ 3V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C ~ 75°C
Current - Supply (Max) 1.2mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.059" (1.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 300-1101-1,300-1101-6,CSX532T16.800M2-U10,300-1101-2,CSX532T16800M2UT10
Standard Package 2,000
Win Source Part Number 1103503-CSX532T16.800M2-UT10
Ultra Librarian 3D Model Ultra Librarian CSX532T16.800M2-UT10 CAD Model

Description

The CSX532T is a TCXO oscillator from Citizen Finedevice Co Ltd.

  • Frequency: 16.8 MHz
  • Frequency Stability: ±2.5ppm
  • Mounting Type: SMD (SMT)
  • Package/Case: 4-SMD, No Lead
  • Voltage Supply: 2.4V ~ 3V
  • Current Supply (Max): 1.2mA
  • Operating Temperature: -30°C to 75°C
  • Dimensions: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Status: Obsolete
  • ECCN: EAR99
