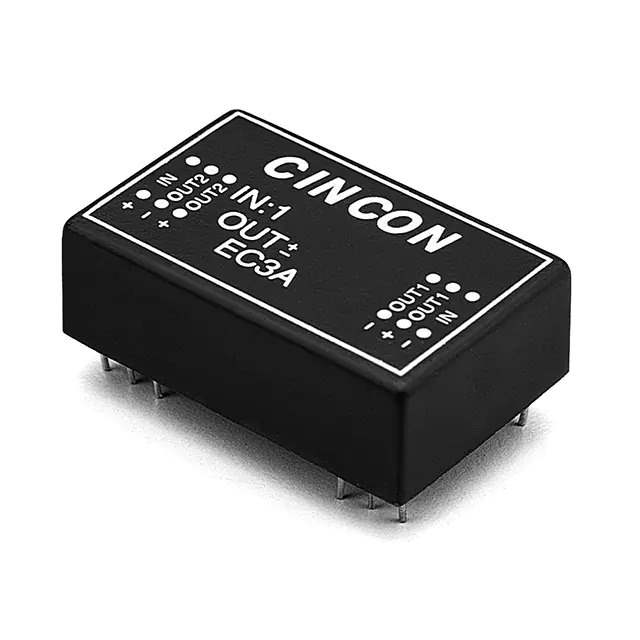

Same model may have multiple batches, images only for reference.

EC3A25

Name: EC3A25
Brand: Cincon Electronics Co. LTD
SKU: 587914
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EC3A25
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W
Datasheet	EC3A25 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	EC3A (3W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-25°C ~ 71°C
Efficiency	79%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 14 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Standard Package	10 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	587914-EC3A25
Ultra Librarian 3D Model	Ultra Librarian EC3A25 CAD Model

Alternative Products

Description

The 587914-EC3A25 is a DC-DC converter module from the EC3A series manufactured by Cincon Electronics Co. LTD.

Module Type: Isolated
Power Rating: 3W
Protection: Short Circuit Protection (SCP)
Package: Tube
Size Dimensions: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Number of Outputs: Two
Current Output: 125mA each
Input Voltage Range: 18V to 36V
Output Voltages: 12V and -12V
Application: Board mount power supply
Sector: Commercial
