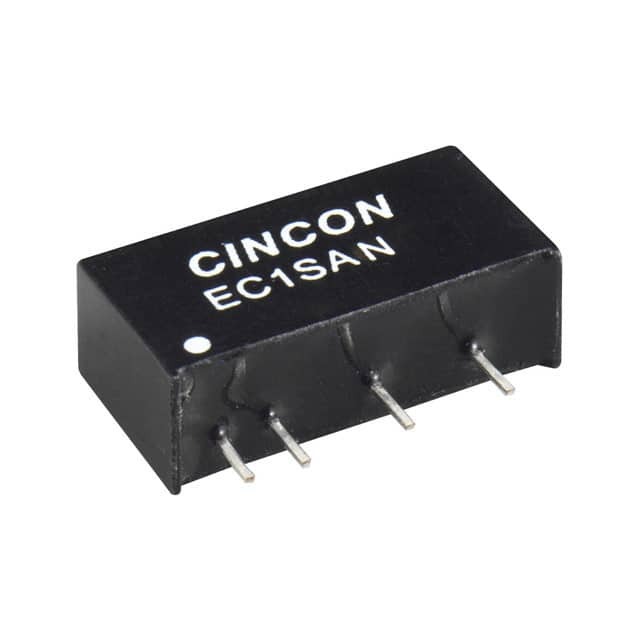

Same model may have multiple batches, images only for reference.

EC1SA12N

Name: EC1SA12N
Brand: Cincon Electronics Co. LTD
SKU: 847825
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EC1SA12N
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 1W
Datasheet	EC1SA12N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	EC1SAN (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Current - Output (Max)	84mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	81%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
Approval Agency	CE
Base Product Number	EC1SA
Standard Package	10 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847825-EC1SA12N
Ultra Librarian 3D Model	Ultra Librarian EC1SA12N CAD Model

Alternative Products

Description

The EC1SAN (1W) is a power supply module designed for board mount applications. Cincon Electronics Co. LTD manufactures it.

Size: 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
Voltage Input: 10.8V to 13.2V
Output: 12V
Efficiency: 81%
Isolation: 1.5 kV
Current Output: 84mA
Power: 1W
Application: ITE (Commercial)
Package: 7-SIP module (5 leads)
Mounting: Through-hole
Temperature Range: -40°C to 85°C
Approvals: CE
