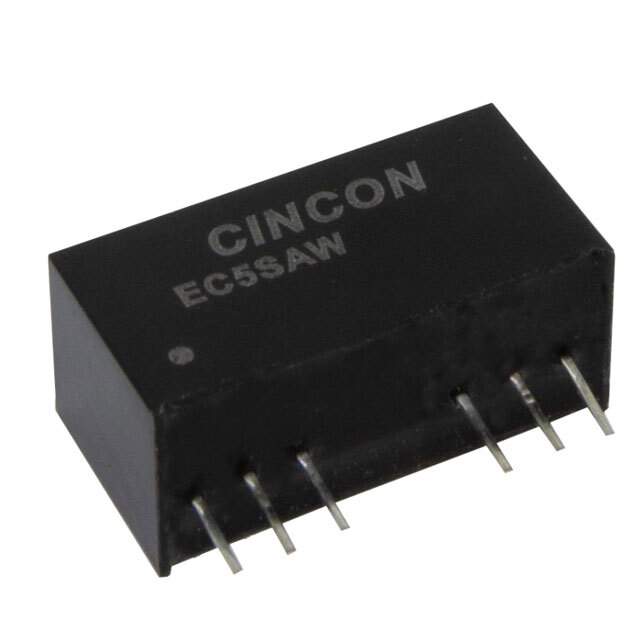

Same model may have multiple batches, images only for reference.

EC5SAW-48S05N

Name: EC5SAW-48S05N
Brand: Cincon Electronics Co. LTD
SKU: 1338415
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EC5SAW-48S05N
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 18V - 75V Input
Datasheet	EC5SAW-48S05N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	EC5SAW (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	85%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 6 Leads
Size / Dimension	0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Control Features	Enable, Active Low
Approval Agency	CE
Base Product Number	EC5SAW
Standard Package	10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338415-EC5SAW-48S05N
Ultra Librarian 3D Model	Ultra Librarian EC5SAW-48S05N CAD Model

Alternative Products

Description

The Cincon Electronics Co. LTD EC5SAW (10W) series isolated module DC-DC converter is a reliable and efficient power supply that is perfect for your electronic devices.

Features: Remote On/Off Control
Voltage Isolation: 3 kV
Standard Package: 10
Power Rating: 10W
Output: Single
Maximum Current Output: 2A
Package/Case: 8-SIP Module, 6 Leads
Temperature Range: -40°C to 105°C (with derating)
