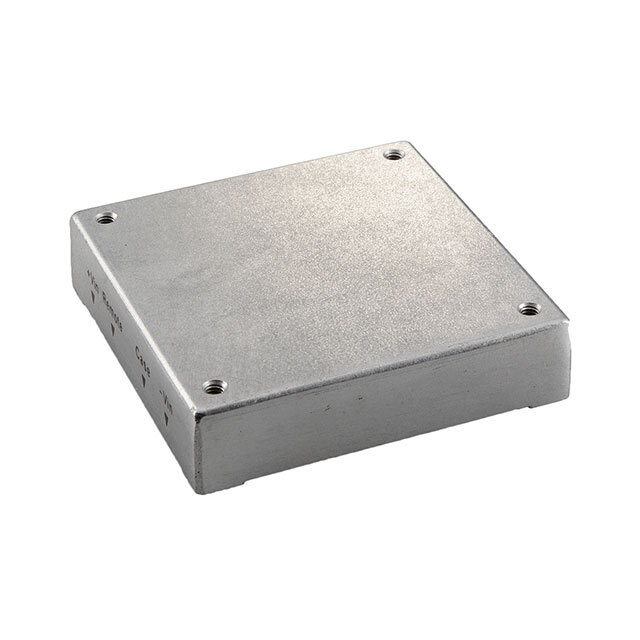

Same model may have multiple batches, images only for reference.
CHB100W-24S15 Cincon Electronics Co. LTD – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CHB100W-24S15

Part No CHB100W-24S15
Manufacturer Cincon Electronics Co. LTD
Catalog Board Mount AC DC Converters
Description DC DC CONVERTER 15V 101W
Datasheet
CHB100W-24S15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board MountDC DC Converters
Mfr Cincon Electronics Co. LTD
Series CHB100W (100W)
Packaging Tray
Part Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Current - Output (Max) 6.7A
Power (Watts) 101 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature -40°C ~ 100°C (With Derating)
Efficiency 87%
Mounting Type Through Hole
Package / Case Half Brick
Size / Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package Half Brick
Control Features Enable, Active High
Approval Agency CE, cURus
Standard Number 60950-1
Base Product Number CHB100W
Ultra Librarian 3D Model Ultra Librarian CHB100W-24S15 CAD Model
