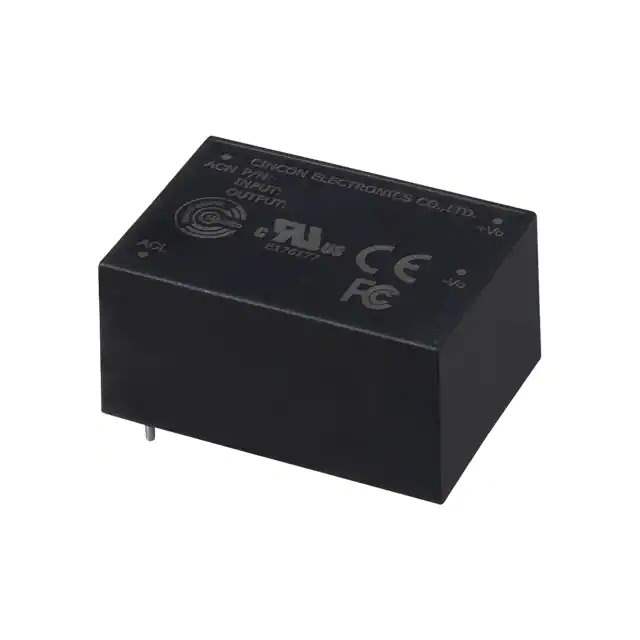

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Cincon Electronics Co. LTD
Series CFM12S (12W)
Package Tube
Product Status Active
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 12V
Current - Output (Max) 1A
Power (Watts) 12 W
Applications Household Appliances, ITE (Commercial)
Features Universal Input
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case Module
Size / Dimension 1.60" L x 1.10" W x 0.77" H (40.6mm x 27.9mm x 19.6mm)
Approval Agency CE, cURus, FCC, Nemko
Standard Number 60335-1; 62368-1
Line Regulation ±1%
Load Regulation ±1%
Base Product Number CFM12S120
Standard Package 17 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 845070-CFM12S120-E
Ultra Librarian 3D Model Ultra Librarian CFM12S120-E CAD Model

Description

The CFM12S (12W) is an enclosed AC-DC converter designed for board mount applications.

  • Input Voltage: 90 ~ 264 VAC
  • Size: 1.60" L x 1.10" W x 0.77" H (40.6mm x 27.9mm x 19.6mm)
  • Output Voltage: 12V
  • Output Current: 1A
  • Efficiency: 85%
  • Line Regulation: ±1%
  • Load Regulation: ±1%
  • Applications: Household Appliances, ITE (Commercial)
  • Package: Module
  • Operating Temperature: -40°C to 75°C (with derating)
  • Manufacturer: Cincon Electronics Co. LTD
  • Approvals: CE, cURus, FCC, Nemko
