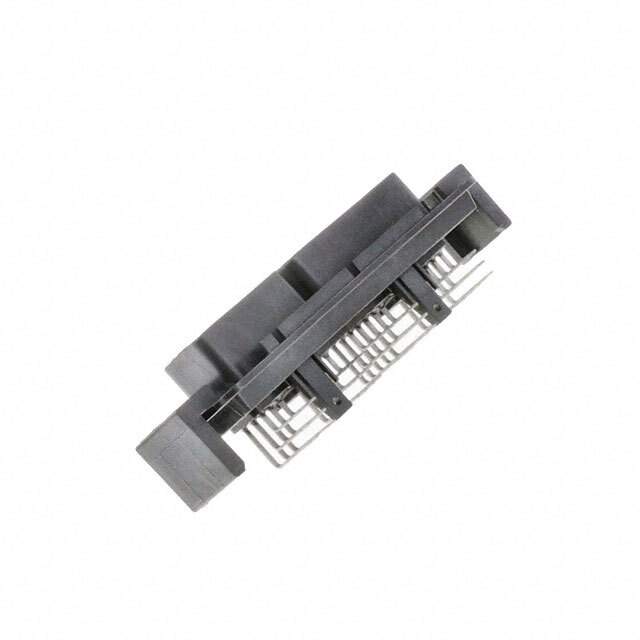

5810148005 Real Image
Same model may have multiple batches, images only for reference.

5810148005

Part No 5810148005
Manufacturer Cinch Connectivity Solutions
Catalog Rectangular Connectors
Description CONN HEADER R/A 48POS / Connector Header Through Hole, Right Angle 48 position
Datasheet
5810148005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Cinch Connectivity Solutions
Series ModICE® SE
Package Bulk
Connector Type Header
Contact Type Male Pin
Number of Positions 48
Number of Rows 3
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Threaded
Contact Length - Post 0.126" (3.20mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polymer, Glass Filled
Temperature Range - Operating -40°C ~ 85°C
Ingress Protection IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Insulation Color Black
Current Rating (Amps) 10A
Applications Automotive
Standard Package 72
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339351-5810148005
Ultra Librarian 3D Model Ultra Librarian 5810148005 CAD Model

Description

The Cinch Connectivity Solutions ModICE SE Header Male Pin Connector is a 48 position connector with a board to cable/wire style.

  • Series: ModICE SE
  • Number of Positions: 48
  • Style: Board to Cable/Wire
  • Termination: Solder
  • Contact Finish: Tin (Mating and Post)
  • Connector Type: Header, Male Pin
  • Shrouding: Shrouded - 4 Wall
  • Mounting Style: Through Hole, Right Angle
  • Insulation Material: Polymer, Glass Filled
  • Insulation Color: Black
  • Current Rating: 10A
  • ECCN: EAR99
