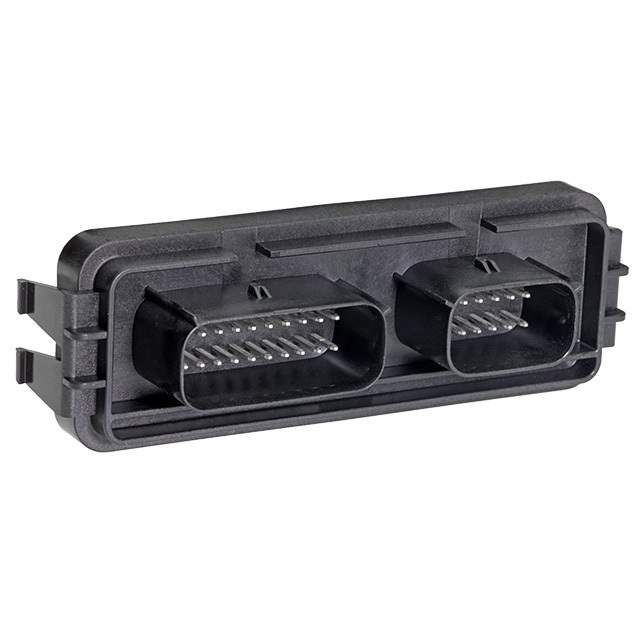

Part No 5810132011
Manufacturer Cinch Connectivity Solutions
Catalog Rectangular Connectors
Description CONN HEADER R/A 32POS 3.5MM / Connector Header Panel Mount, Through Hole, Right Angle 32 (20 + 12) position 0.138" (3.50mm)
Datasheet
5810132011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Cinch Connectivity Solutions
Series ModICE® MX
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Number of Positions 32 (20 + 12)
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock
Contact Length - Post 0.130" (3.30mm)
Insulation Height 1.610" (40.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polymer, Glass Filled
Temperature Range - Operating -40°C ~ 85°C
Ingress Protection IP67, IP69K
Insulation Color Black
Current Rating (Amps) 10A
Applications Automotive
Standard Package 72
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339583-5810132011
Ultra Librarian 3D Model Ultra Librarian 5810132011 CAD Model

Description

The ModICE® MX series from Cinch Connectivity Solutions is a header connector designed for use in automotive applications.

  • Number of Positions: 32
  • Number of Rows: 2
  • Fastening Type: Latch Lock
  • Style: Board to Cable/Wire
  • Pitch - Mating: 0.138" (3.50mm)
  • Contact Length - Mating: 0.130" (3.30mm)
  • Contact Material: Brass
  • Current Rating: 10A
  • Ingress Protection: IP67, IP69K
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Features: Shrouded 4 Wall
  • Insulation Material: Polymer, Glass Filled
  • Packaging: Bulk
  • Standard Package: 72
