Same model may have multiple batches, images only for reference.

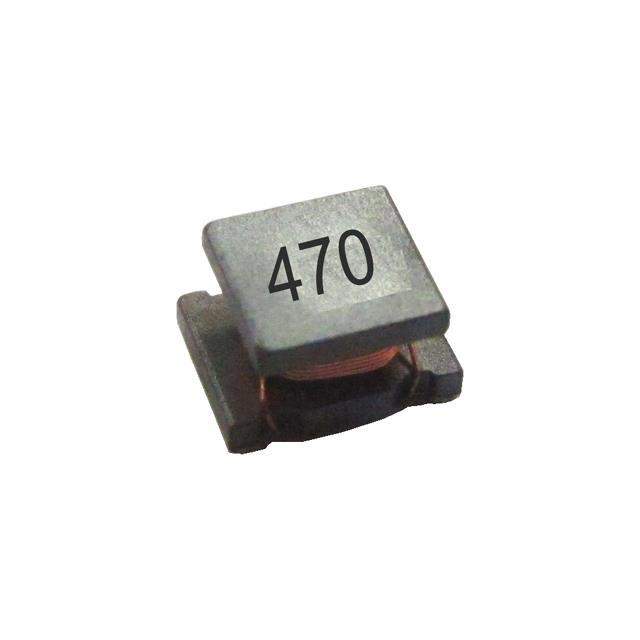

BWQV003225206R8K00 Real Image
Same model may have multiple batches, images only for reference.

BWQV003225206R8K00

Part No BWQV003225206R8K00
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR RF / 6.8 µH Unshielded Drum Core, Wirewound Inductor 240 mA 1.5Ohm Max 1210 (3225 Metric)
Datasheet
BWQV003225206R8K00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Chilisin Electronics
Series BWQV
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±10%
Current Rating (Amps) 240 mA
Shielding Unshielded
DC Resistance (DCR) 1.5Ohm Max
Q @ Freq 20 @ 1MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.087" (2.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-BWQV003225206R8K00TR
Standard Package 2,000
Win Source Part Number 1036105-BWQV003225206R8K00
Ultra Librarian 3D Model Ultra Librarian BWQV003225206R8K00 CAD Model

Description

The Chilisin electronic component with Win Source Part Number 1036105-BWQV003225206R8K00 is a fixed inductor with a drum core and wirewound type.

  • Shielding: Unshielded
  • Core Material: Ferrite
  • Inductance: 6.8 µH
  • Tolerance: ±10%
  • Package: Tape & reel (TR)
  • Package/Case: 1210 (3225 Metric)
  • DC Resistance (DCR): 1.5Ohm Max
  • Device Package: 1210
  • RoHS Compliant: Yes
  • Temperature Range: -40°C ~ 125°C
  • Manufacturer: Chilisin Electronics
