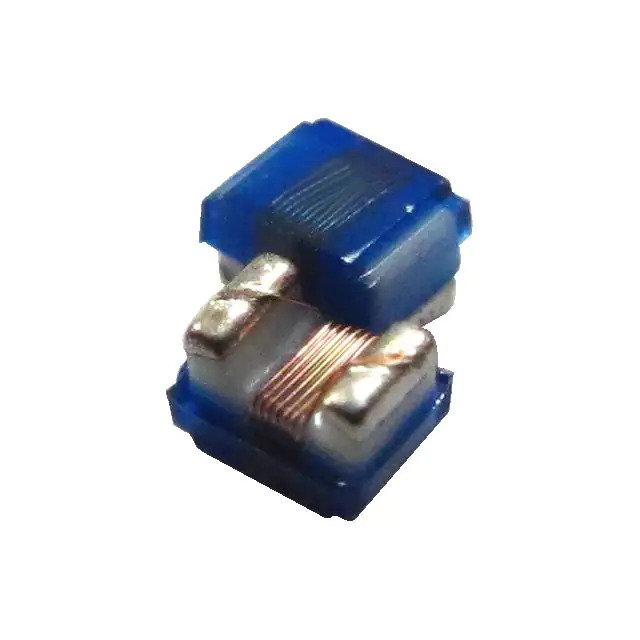

Same model may have multiple batches, images only for reference.
BWCM001207074N3H00 Chilisin
Same model may have multiple batches, images only for reference.

BWCM001207074N3H00

Part No BWCM001207074N3H00
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR RF
Datasheet
BWCM001207074N3H00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BWCM
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 4.3 nH
Tolerance ±3%
Current Rating (Amps) 750 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 25 @ 250MHz
Frequency - Self Resonant 10GHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Features -
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.047" L x 0.028" W (1.19mm x 0.70mm)
Height - Seated (Max) 0.026" (0.66mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369965-BWCM001207074N3H00
Ultra Librarian 3D Model Ultra Librarian BWCM001207074N3H00 CAD Model

Description

The Chilisin Electronics BWCM001207074N3H00 is a drum core, wirewound inductor.

  • Series: BWCM
  • Package: 0402 (1005 Metric)
  • Temperature Range: -40°C to 125°C
  • Tolerance: ±3%
  • Core Material: Ceramic
  • Inductance: 4.3 nH
  • Current Rating: 750 mA
  • DC Resistance: 70mOhm max.
  • Self-Resonant Frequency: 10GHz
  • Q Value: 25 @ 250MHz
  • Mounting Type: Surface Mount
  • Shielding: Unshielded
  • Packaging: Tape and Reel
