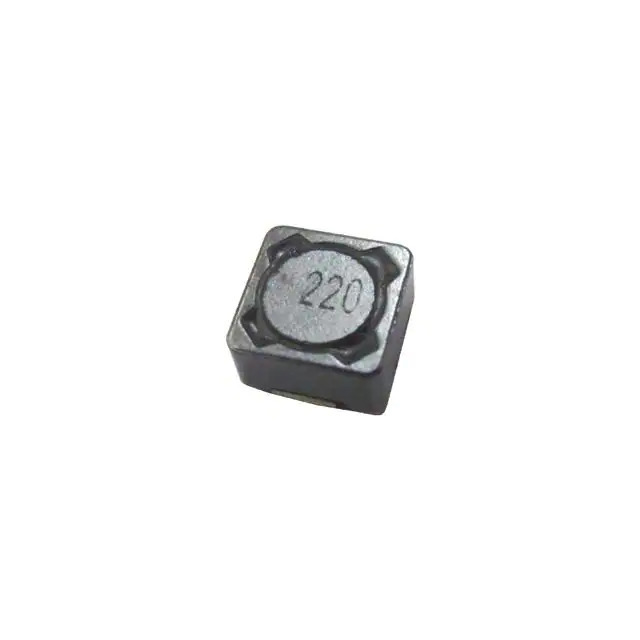

Same model may have multiple batches, images only for reference.
BPSC00070740101MS0 Chilisin
Same model may have multiple batches, images only for reference.

BPSC00070740101MS0

Part No BPSC00070740101MS0
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER
Datasheet
BPSC00070740101MS0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BPSC
Package Tape & Reel
Product Status Active
Type -
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current - Saturation (Isat) 500mA
Shielding Shielded
DC Resistance (DCR) 358mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -30°C ~ 100°C
Inductance Frequency - Test 10 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370584-BPSC00070740101MS0
Ultra Librarian 3D Model Ultra Librarian BPSC00070740101MS0 CAD Model

Description

The Chilisin Electronics 1370584-BPSC00070740101MS0 is a fixed inductor from.

  • Series: BPSC
  • Mounting Type: Surface Mount
  • Inductance: 100 µH
  • Current Rating: 500mA
  • Shielding: Shielded
  • DC Resistance: 358mOhm
  • Operating Temperature: -30°C to 100°C
  • Package Size: Nonstandard, 0.276" L x 0.276" W (7.00mm x 7.00mm), Height: 0.157" (4.00mm)
  • Tolerance: ±20%
  • Self-Resonant Frequency: None
  • RoHS Compliant: Yes
  • REACH Status: Unaffected
