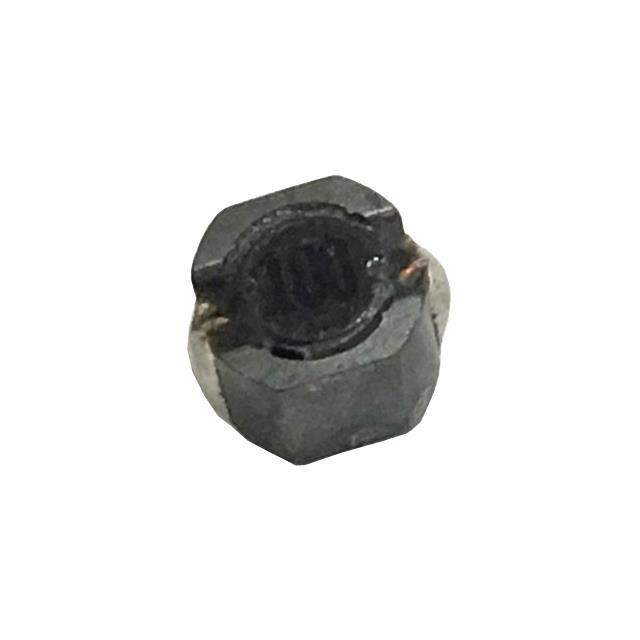

BPAL000606302R2TAE Real Image
Same model may have multiple batches, images only for reference.

BPAL000606302R2TAE

Part No BPAL000606302R2TAE
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER / 2.2 µH Shielded Inductor 4.13 A 20mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Chilisin Electronics
Series BPAL
Package Tape & Reel (TR)
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 4.13 A
Current - Saturation (Isat) 2.42A
Shielding Shielded
DC Resistance (DCR) 20mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.252" L x 0.244" W (6.40mm x 6.20mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-BPAL000606302R2TAETR
Standard Package 1,500
Win Source Part Number 1174048-BPAL000606302R2TAE
Ultra Librarian 3D Model Ultra Librarian BPAL000606302R2TAE CAD Model

Description

The Chilisin electronic component with the Win Source Part Number 1174048-BPAL000606302R2TAE is an inductor, coil, choke type fixed inductor.

  • Series: BPAL
  • Type: Shielded
  • Inductance: 2.2 μH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • DC Resistance: 20mOhm Max
  • Current Rating: 4.13 A
  • Mounting: SMD (SMT)
  • Manufacturer: Chilisin
