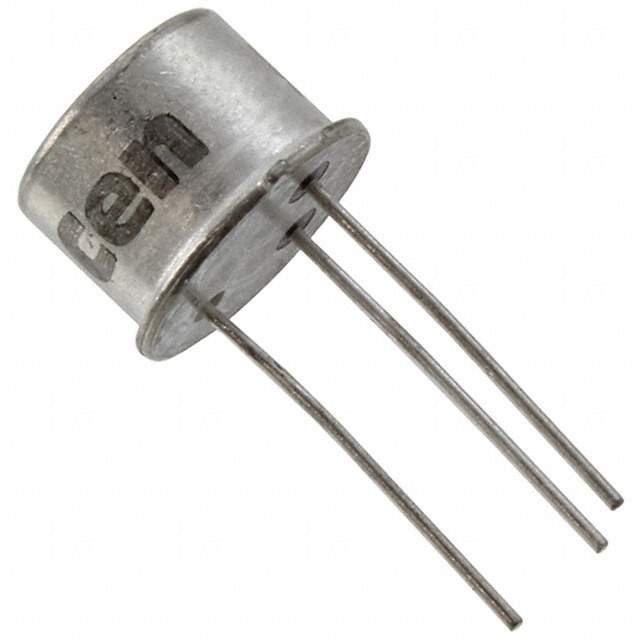

2N5109 PBFREE

Name: 2N5109 PBFREE
Brand: Central Semiconductor Corp
SKU: 966805
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2N5109 PBFREE
Manufacturer	Central Semiconductor Corp
Catalog	RF Transistors (BJT)
Description	RF TRANS NPN 20V 1.2GHZ TO39 / RF Transistor NPN 20V 400mA 1.2GHz 1W Through Hole TO-39
Datasheet	2N5109 PBFREE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - RF
Mfr	Central Semiconductor Corp
Package	Bulk
Product Status	Obsolete
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	20V
Frequency - Transition	1.2GHz
Noise Figure (dB Typ @ f)	3dB @ 200MHz
Power - Max	1W
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 50mA, 15V
Current - Collector (Ic) (Max)	400mA
Temperature Range - Operating	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0095
Other Names	1514-2N5109PBFREE,2N5109 LEAD FREE,2N5109CS,2N5109CS-ND
Standard Package	500
Win Source Part Number	966805-2N5109 PBFREE
Ultra Librarian 3D Model	Ultra Librarian 2N5109 PBFREE CAD Model

Description

The Central Semiconductor Corp 2N5109 PBFREE is an NPN bipolar transistor used in RF applications. The package is TO-205AD, TO-39-3 Metal Can, and the supplier device package is TO-39.

Power - Max: 1W
Voltage - Collector Emitter Breakdown (Max): 20V
Current - Collector (Ic) (Max): 400mA
Frequency - Transition: 1.2GHz
Noise Figure (dB Typ @ f): 3dB @ 200MHz
Alternative part: 2N5109 PBFREE2N5109PBFREE
