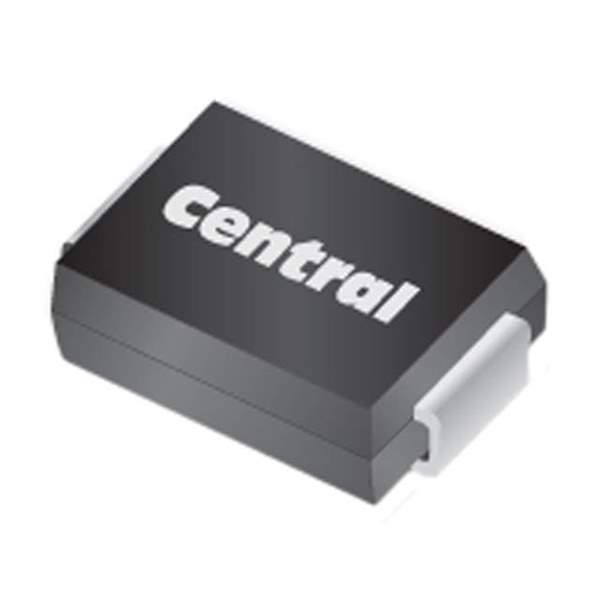

The 1SMC43CA TR13 is a surface-mount Transient Voltage Suppressor (TVS) diode from Central Semiconductor Corp. It provides robust protection against voltage transients caused by ESD, lightning, and inductive load switching. This bidirectional TVS diode is designed to safeguard sensitive electronic circuits by clamping transient voltages to a safe level. The 'TR13' suffix indicates that the device is provided in tape and reel packaging for automated assembly.

Applications:

• I/O port protection for microcontrollers and processors
• Protection of data lines in communication equipment
• Surge protection in industrial control systems
• Voltage transient suppression in automotive electronics
• ESD protection for consumer electronics

Features:

• Surface-mount SMC package
• Bidirectional TVS diode
• Standoff voltage of 43V
• Peak pulse power of 1500W
• Excellent clamping capability
• Fast response time
• RoHS compliant

Benefits:

• Provides effective transient voltage protection
• High peak pulse power handling capability
• Bidirectional configuration simplifies circuit design
• Compact SMC package saves board space
• Fast response time ensures rapid clamping action

Additional Details:

The 1SMC43CA TR13 has a standoff voltage (VWM) of 43V, meaning it remains non-conductive during normal operation below this voltage. When a transient voltage exceeds the breakdown voltage, the diode rapidly switches into a conducting state, clamping the voltage and diverting the surge current away from the protected circuitry. Its peak pulse power rating of 1500W signifies its capacity to handle high-energy transients. The bidirectional characteristic eliminates the need to consider polarity during installation. The SMC package is designed for efficient surface mounting and heat dissipation. The TR13 denotes that the component is supplied on tape and reel for automated pick-and-place assembly processes.

This TVS diode is ideal for protecting sensitive electronic components from damage caused by voltage transients in a variety of applications. Its high reliability and robust performance make it a dependable solution for surge protection.
