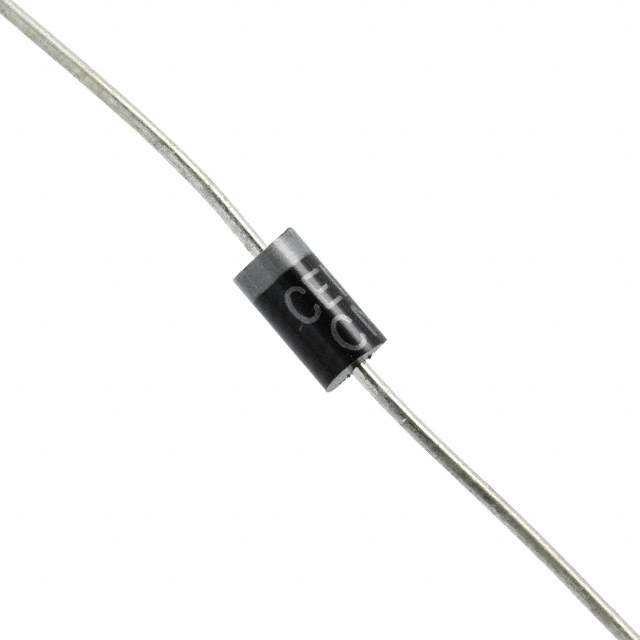

1N5949B TR Real Image
Same model may have multiple batches, images only for reference.

1N5949B TR

Part No 1N5949B TR
Manufacturer Central Semiconductor Corp
Catalog Diodes - Zener - Single
Description DIODE ZENER 100V 1.5W DO41
Datasheet
1N5949B TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 100V
Tolerance ±5%
Maximum Power Dissipation 1.5W
Impedance (Max) (Zzt) 250 Ohm
Current - Reverse Leakage @ Vr 1μA @ 76V
Voltage - Forward (Vf) (Max) @ If 1.5V @ 200mA
Temperature Range - Operating -65°C to 200°C (TJ)
Mounting Through Hole
Case / Package DO-41
Win Source Part Number 1002367-1N5949B TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1N5949B TR CAD Model

Description

The Central Semiconductor Corp 1N5949B TR is a through-hole mounted Zener diode that is used in discrete semiconductor products.

  • Tolerance: ±5%
  • Maximum Forward Voltage: 1.5V @ 200mA
  • Maximum Reverse Leakage Current: 1µA @ 76V
  • Zener Voltage: 100V
  • Maximum Impedance: 250 Ohm
  • Package: DO-41 case
  • Maximum Power Dissipation: 1.5W
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Suitable for: Voltage regulation needs
