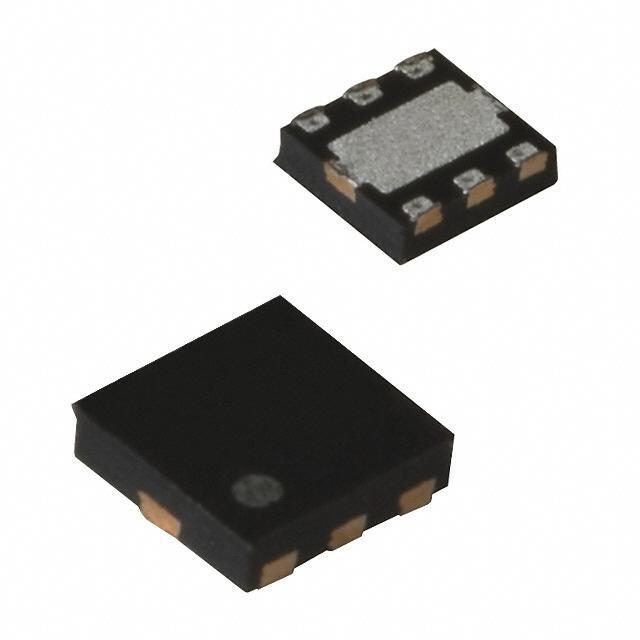

UPG2163T5N-E2-A CEL
Same model may have multiple batches, images only for reference.

UPG2163T5N-E2-A

Part No UPG2163T5N-E2-A
Manufacturer CEL
Catalog RF Switches
Description IC MMIC SWITCH SPDT 6-TSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Lower 500MHz
Frequency - Upper 8GHz
Isolation @ Frequency 38dB @ 2.5GHz (typ)
Insertion Loss @ Frequency 0.5dB @ 2.5GHz
IIP3 55dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 31dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -45°C to 85°C
RF Type 802.11a/b/g/n
Case / Package 6-TSON
Win Source Part Number 036124-UPG2163T5N-E2-A
Family Name UPG2163
Introduction Date May 19, 2005
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPG2163T5N-E2-A CAD Model

Description

The UPG2163T5N-E2-A is a reflective SPDT circuit designed for RF/IF and RFID applications.

  • Impedance: 50 Ohm
  • Frequency Range: 500MHz to 8GHz
  • Isolation @ Frequency: 38dB @ 2.5GHz (typ)
  • Insertion Loss @ Frequency: 0.5dB @ 2.5GHz
  • IIP3: 55dBm (typ)
  • P1dB: 31dBm (typ) IP1dB
  • Family: It is part of the UPG2163 family and comes in a 6-TSON package.
  • Status: The UPG2163T5N-E2-A is an obsolete (EOL) product and has a high popularity in the market.
  • Supply and Demand Status: The supply and demand status is balanced.
