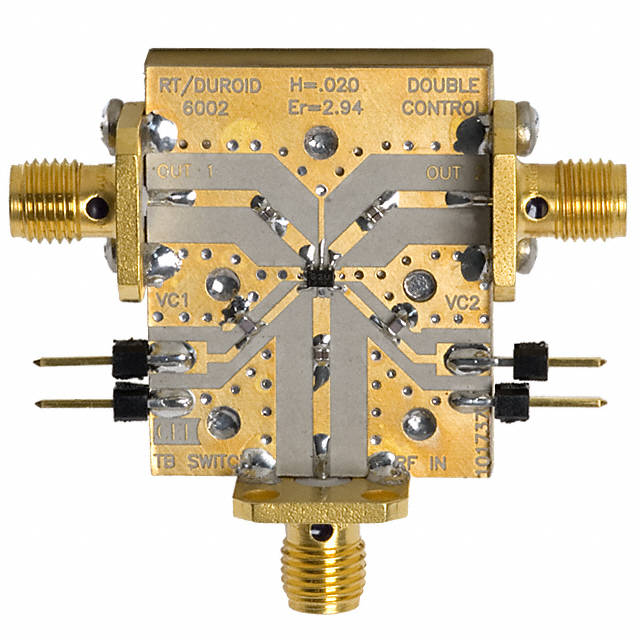

UPG2009TB-EVAL CEL
Same model may have multiple batches, images only for reference.

UPG2009TB-EVAL

Part No UPG2009TB-EVAL
Manufacturer CEL
Catalog RF Evaluation and Development Kits, Boards
Description EVAL BOARD FOR UPG2009TB
Datasheet
UPG2009TB-EVAL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - RF Evaluation and Development Kits, Boards
Mfr CEL
Package Bulk
Product Status Obsolete
Type Switch, SPDT
Frequency 500MHz ~ 2.5GHz
For Use With/Related Products UPG2009TB
Supplied Contents Board(s)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8471.41.0150
Win Source Part Number 533822-UPG2009TB-EVAL
Ultra Librarian 3D Model Ultra Librarian UPG2009TB-EVAL CAD Model

Description

The 533822-UPG2009TB-EVAL is an RF evaluation and development kit board designed for the UPG2009TB switch.

  • Frequency Range: 500MHz to 2.5GHz
  • Kit Includes: A single board
  • Packaging: Bulk
  • Ideal for: Testing and prototyping RF applications, allowing engineers to evaluate the performance of the UPG2009TB switch in various scenarios.
  • Status: Obsolete
