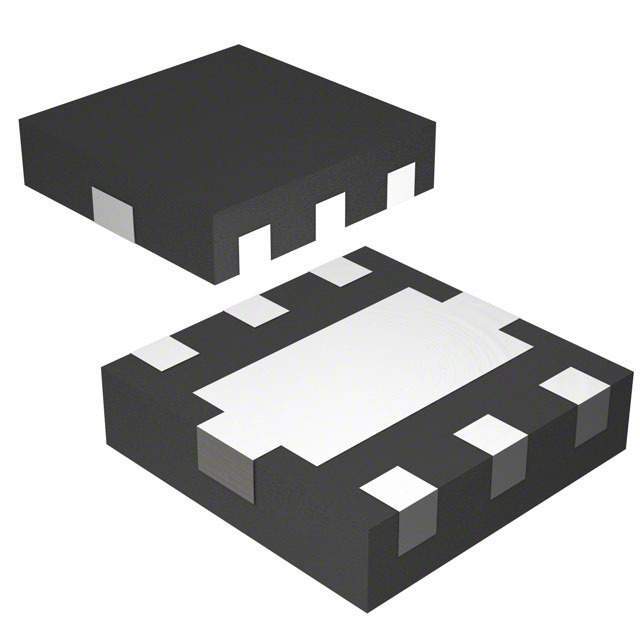

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Cut Reel
Status Obsolete(EOL)
Frequency 1575.42MHz
P1dB -18dBm
Gain 17dB to 22dB
Noise Figure 0.8dB
RF Type GPS
Supply Voltage - Operating 1.6 V to 3.3 V
Operating Supply Current 6.5mA
Test Frequency 1575.42MHz
Case / Package 6-TSON
Win Source Part Number 107375-UPC8236T6N-E2-A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian UPC8236T6N-E2-A CAD Model

Description

The UPC8236T6N-E2-A is an RF/IF and RFID component manufactured by CEL. This component is obsolete (EOL) and is supplied in a 6-TSON package.

  • Frequency: 1575.42MHz.
  • Gain: 17dB to 22dB.
  • Noise Figure: 0.8dB.
  • P1dB: -18dBm.
  • RF Type: GPS.
  • Operating Supply Voltage: 1.6V to 3.3V.
  • Operating Supply Current: 6.5mA.
  • Note: Unfortunately, no further information is available about this product.
