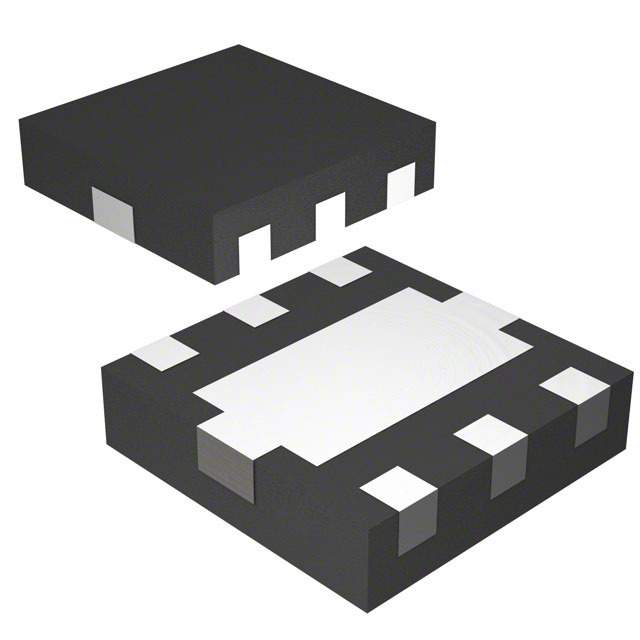

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Cut Reel
Status Obsolete(EOL)
Frequency 1575.42MHz
P1dB -18dBm
Gain 17dB to 22dB
Noise Figure 0.8dB
RF Type GPS
Supply Voltage - Operating 1.6 V to 3.3 V
Operating Supply Current 6.5mA
Test Frequency 1575.42MHz
Case / Package 6-TSON
Win Source Part Number 402021-UPC8236T6
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPC8236T6 CAD Model

Description

The 402021-UPC8236T6 is an electronic component manufactured by CEL. This component is categorized as 'RF/IF and RFID' and is obsolete (EOL).

  • Popularity: It has a medium popularity in the market and a limited supply and demand status.
  • Risk: There is a 33% probability of this component being counterfeit in the open market.
  • Application: This component is used in GPS applications and has a test frequency of 1575.42MHz.
  • Gain: 17dB to 22dB.
  • Noise Figure: 0.8dB.
