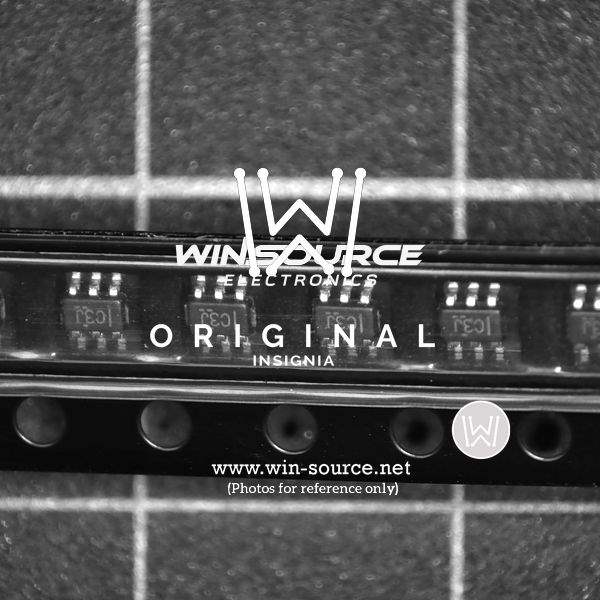

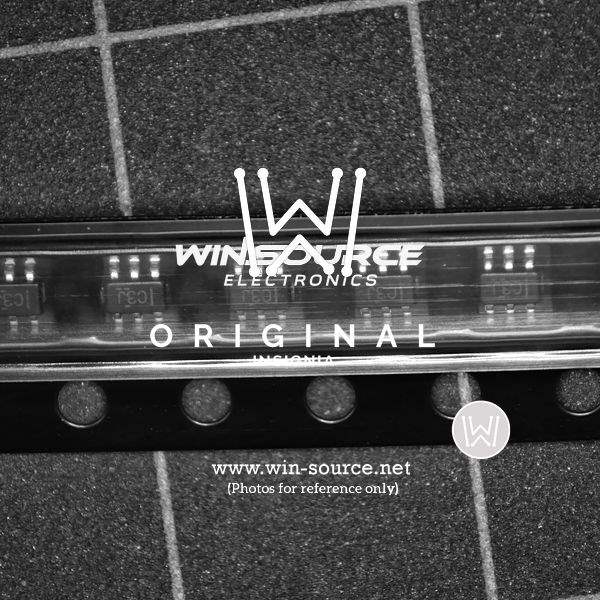

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 2.8GHz to 3.2GHz
P1dB 3dBm (2mW) to 5.5dBm (3.5mW)
Gain 20dB to 26dB
Noise Figure 4dB to 5.5dB
RF Type DBS
Supply Voltage - Operating 4.5 V to 5.5 V
Operating Supply Current 15mA to 24mA
Test Frequency 2.2GHz
Case / Package 6-SuperMiniMold
Win Source Part Number 390601-UPC3223TB-E3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPC3223TB-E3 CAD Model

Description

The UPC3223TB-E3 is an obsolete (EOL) product manufactured by CEL.

  • Category: RF/IF and RFID electronic component
  • Application: Suitable for DBS RF type applications
  • Frequency Range: 2.8GHz to 3.2GHz
  • Test Frequency: 2.2GHz
  • Gain Range: 20dB to 26dB
  • Noise Figure: 4dB to 5.5dB
  • P1dB Range: 3dBm (2mW) to 5.5dBm (3.5mW)
  • Package: Reel-TR
  • Case/Package: 6-SuperMiniMold
  • Operating Supply Voltage: 4.5V to 5.5V
  • Operating Supply Current: 15mA to 24mA
