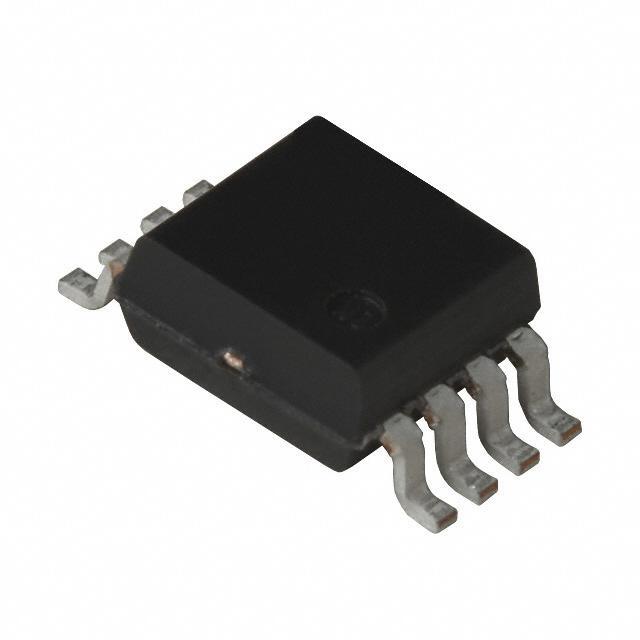

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr CEL
Package Tape & Reel
Product Status Obsolete
Function Prescaler
Frequency 500MHz ~ 1GHz
RF Type DBS
Secondary Attributes Divide by 2, 4, 8
Mounting Type Surface Mount
Package / Case 8-SSOP (0.126", 3.20mm Width)
Supplier Device Package 8-SSOP
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 389739-UPB1509GV-E1
Ultra Librarian 3D Model Ultra Librarian UPB1509GV-E1 CAD Model

Description

The UPB1509GV-E1 is a prescaler RF integrated circuit (IC) from CEL.

  • It is designed for use in RF and wireless applications and operates in the frequency range of 500MHz to 1GHz.
  • The UPB1509GV-E1 is a surface mountable IC that comes in an 8-SSOP package.
  • It has the secondary attributes of dividing the input frequency by 2, 4, or 8.
  • This IC is suitable for applications that require frequency division in RF circuits.
  • Please note that the UPB1509GV-E1 is an obsolete product.
  • However, despite its obsolescence, it can still be a suitable choice for certain projects where its specifications meet the requirements.
  • It is important to consider alternative RF ICs if you need a device with similar specifications that is currently in production.
