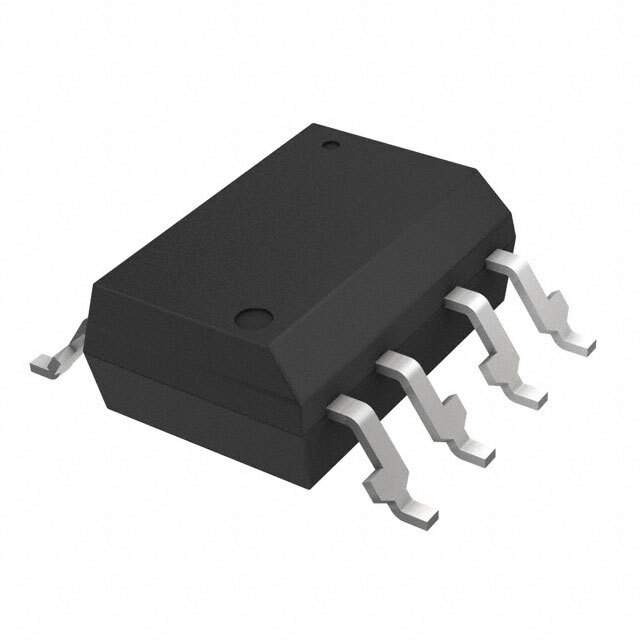

PS8501L2-E3-AX Real Image
Same model may have multiple batches, images only for reference.

PS8501L2-E3-AX

Part No PS8501L2-E3-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 8SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Features Optoisolator Transistor with Base Output 5000Vrms 1 Channel 8-SMD
Manufacturer CEL
Series NEPOC
Package Reel - TR
Operating Temperature Range -55°C ~ 100°C
Mounting Surface Mount
Package 8-SMD, Gull Wing
Case / Package 8-SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930871-PS8501L2-E3-AX
Ultra Librarian 3D Model Ultra Librarian PS8501L2-E3-AX CAD Model

Description

The PS8501L2-E3-AX from CEL is an optoisolator transistor with base output.

  • Voltage Isolation: 5000Vrms
  • Number of Channels: 1
  • Package / Case: 8-SMD, Gull Wing
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 100°C
  • RoHS Compliant: Yes
  • Supply and Demand Status: Balance
  • Quantity Per Package: 1000
