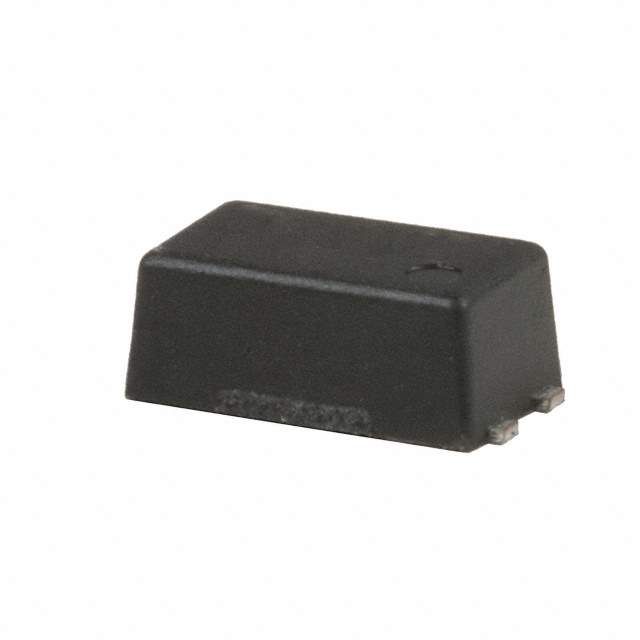

PS2913-1-F3-AX Real Image
Same model may have multiple batches, images only for reference.

PS2913-1-F3-AX

Part No PS2913-1-F3-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 2.5KV TRANS 4SMD
Datasheet
PS2913-1-F3-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 50% @ 1mA
Maximum DC Current Transfer Ratio 200% @ 1mA
Switching Turn-On and Turn-Off Time 80μs, 50μs
Rise and Fall Time 10μs, 10μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 120V
Channel Output Current 30mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 128252-PS2913-1-F3-AX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2913-1-F3-AX CAD Model

Description

The CEL PS2913-1-F3-AX is a transistor output type optocoupler integrated circuit that is designed for isolation applications.

  • Forward voltage: 1.1V
  • Isolation voltage: 2500Vrms
  • Minimum DC current transfer ratio: 50% @ 1mA
  • Maximum DC current transfer ratio: 200% @ 1mA
  • Package: 4-Mini-Flat case
  • Operating temperature range: -55°C to 100°C
  • Supply and demand: balance
