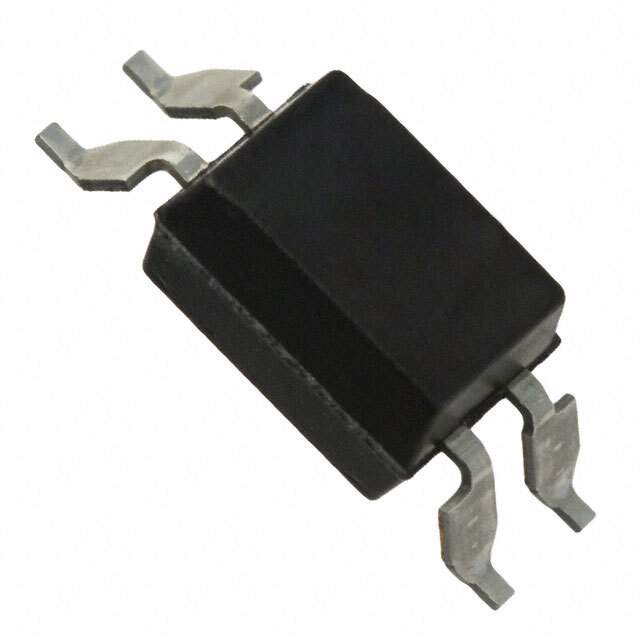

PS2561AL2-1-V-F3-A Real Image
Same model may have multiple batches, images only for reference.

PS2561AL2-1-V-F3-A

Part No PS2561AL2-1-V-F3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4SMD / Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr CEL
Series NEPOC
Package Tape & Reel (TR)
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 400% @ 5mA
Rise / Fall Time (Typ) 3µs, 5µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 30mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 30 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 2,000
Win Source Part Number 963916-PS2561AL2-1-V-F3-A
Ultra Librarian 3D Model Ultra Librarian PS2561AL2-1-V-F3-A CAD Model

Description

The PS2561AL2-1-V-F3-A from CEL is an optoisolator with transistor output.

  • Series: NEPOC
  • Package: tape and reel
  • Maximum DC Forward Current: 30 mA
  • Typical Forward Voltage: 1.2V
  • Rise/Fall Time: 3µs/5µs
  • Current Transfer Ratio: 50% @ 5mA
  • Maximum Voltage Output: 70V
  • Isolation Voltage: 5000Vrms
  • Suitable for use in: isolators, optoisolators, and transistor photovoltaic output applications.
  • Temperature Range: -55°C to 100°C
