Same model may have multiple batches, images only for reference.

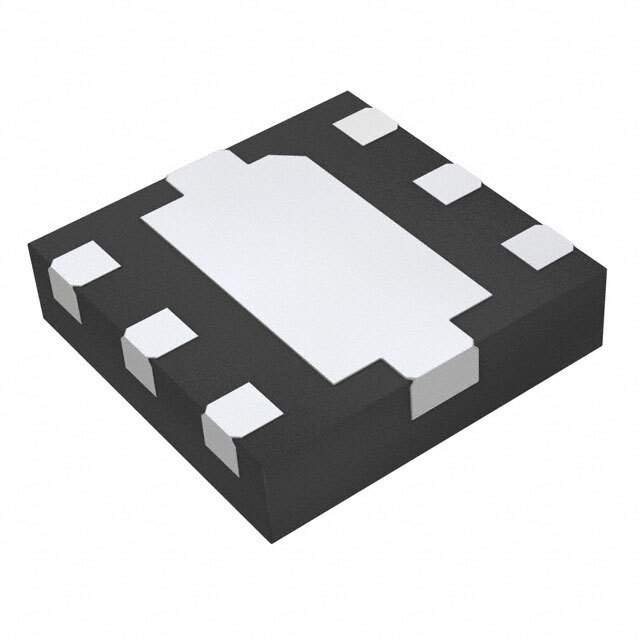

CG2409X3-C2 Real Image
Same model may have multiple batches, images only for reference.

CG2409X3-C2

Part No CG2409X3-C2
Manufacturer CEL
Catalog RF Switches
Description IC RF SWITCH SPDT 6GHZ 6TSON / RF Switch IC 802.11a/b/g/n/ac SPDT 6 GHz 50Ohm 6-TSON (1.5x1.5)
Datasheet
CG2409X3-C2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr CEL
Package Tape & Reel
RF Type 802.11a/b/g/n/ac
Circuit SPDT
Frequency Range 50MHz ~ 6GHz
Isolation 32dB
Insertion Loss 0.7dB
Test Frequency 4GHz
IIP3 62dBm
Impedance 50Ohm
Voltage - Supply 1.8V ~ 5V
Temperature Range - Operating -45°C ~ 85°C
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package 6-TSON (1.5x1.5)
Base Product Number CG2409
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names CG2409X3-C2CT,CG2409X3-C2TR,CG2409X3-C2DKR
Standard Package 10,000
Win Source Part Number 1121879-CG2409X3-C2
Ultra Librarian 3D Model Ultra Librarian CG2409X3-C2 CAD Model

Description

The CEL CG2409X3-C2 is an SPDT RF switch.

  • Frequency Range: 50MHz to 6GHz
  • Impedance: 50Ohm
  • Insertion Loss: 0.7dB
  • Isolation: 32dB @ test frequency of 4GHz
  • IIP3: 62dBm
  • Voltage Supply: 1.8V to 5V
  • Package: 6-XFDFN exposed pad
  • Suitable for: RF/IF and RFID applications such as in wireless LANs and Bluetooth devices
