Same model may have multiple batches, images only for reference.

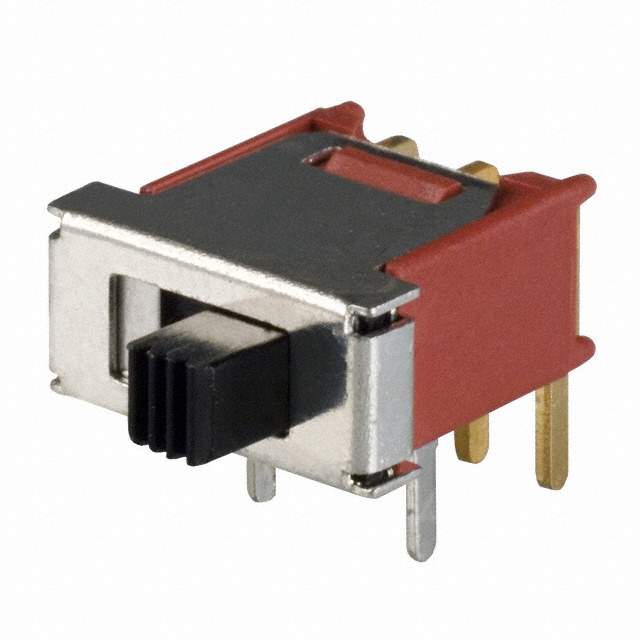

4S1-FSP1-M6RE Real Image
Same model may have multiple batches, images only for reference.

4S1-FSP1-M6RE

Part No 4S1-FSP1-M6RE
Manufacturer Carling Technologies
Catalog Slide Switches
Description SWITCH SLIDE SPDT 0.4VA 20V
Datasheet
4S1-FSP1-M6RE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Carling Technologies
Series 4S
Packaging Bulk
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Standard
Actuator Length 2.90mm
Contact Material Gold (Au)
Contact Finish Gold
Mounting Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Actuator Material Polyamide (PA), Nylon
Operating Temperature Range -30°C ~ 85°C
Electrical Life 30,000 Cycles
Win Source Part Number 763814-4S1-FSP1-M6RE
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4S1-FSP1-M6RE CAD Model

Description

The 763814-4S1-FSP1-M6RE electronic component is manufactured by Carling Technologies.

  • Series: 4S
  • Win Source Part Number: 763814-4S1-FSP1-M6RE
  • Packaging: Bulk
  • Termination Style: PC pin
  • Operating Temperature Range: -30°C to 85°C
  • Terminal: Epoxy sealed
  • Contact Finish and Material: Gold (Au)
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating AC: 20V
  • Voltage Rating DC: 20V
  • Mounting Style: Through hole, Right Angle
  • Circuit: SPDT
  • Switch Function: on-on
  • Actuator Type: Standard
  • Actuator Length: 2.90mm
  • Electrical Life: 30,000 cycles
  • Supply and demand status: Limited
