Same model may have multiple batches, images only for reference.

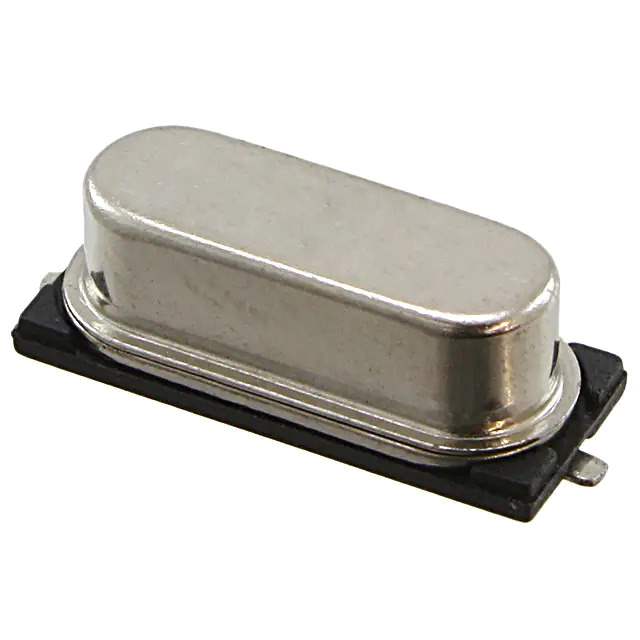

CSM1Z-A2B2C3-40-30.0D18 Real Image
Same model may have multiple batches, images only for reference.

CSM1Z-A2B2C3-40-30.0D18

Part No CSM1Z-A2B2C3-40-30.0D18
Manufacturer Cardinal Components Inc.
Catalog Oscillators
Description CRYSTAL 30.0000MHZ 18PF SMD / 30 MHz ±30ppm Crystal 18pF 40 Ohms HC-49S
Datasheet
CSM1Z-A2B2C3-40-30.0D18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Cardinal Components Inc.
Series CSM1
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 30 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case HC-49S
Size / Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.169" (4.30mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 916141-CSM1Z-A2B2C3-40-30.0D18
Ultra Librarian 3D Model Ultra Librarian CSM1Z-A2B2C3-40-30.0D18 CAD Model

Description

The 916141-CSM1Z-A2B2C3-40-30.0D18 is a MHz crystal from Cardinal Components Inc.

  • Series: CSM1
  • Mounting Type: surface mount
  • Package: tape & reel
  • Size: 0.449" L x 0.185" W (11.40mm x 4.70mm)
  • Seated Height: 0.169" (4.30mm) (maximum)
  • Standard Package: 1,000 pieces
  • Frequency: 30 MHz
  • Frequency Tolerance: ±30ppm
  • ESR: 40 Ohms
  • Load Capacitance: 18pF
  • ECCN: EAR99 compliant
  • REACH: not affected by REACH regulations
