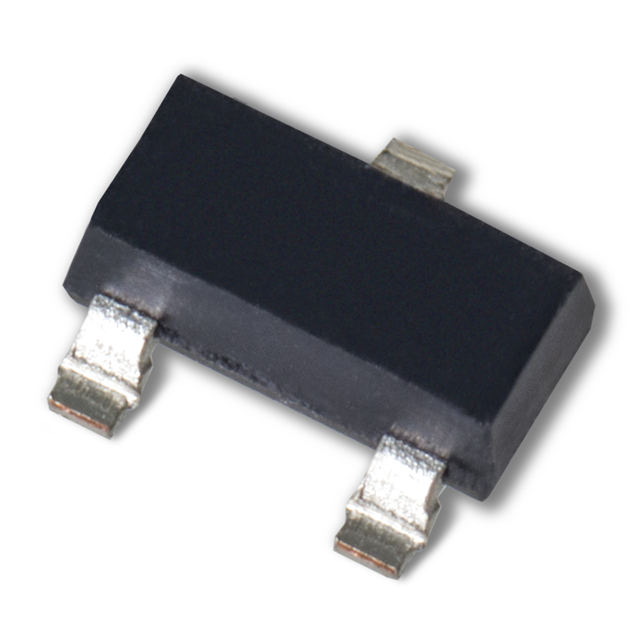

The SST508 is a high-frequency N-Channel JFET (Junction Field-Effect Transistor) manufactured by Calogic, LLC. It's designed for low-noise amplifier applications and high-speed switching. This JFET offers excellent performance in RF amplifiers, mixers, and impedance converters.
Applications:
- RF amplifiers for communication systems, including radios and satellite receivers.
- Mixers for frequency conversion in signal processing circuits.
- Impedance converters for matching high-impedance sources to low-impedance loads.
- Low-noise preamplifiers for audio equipment and instrumentation.
- High-speed analog switches for data acquisition systems.
Features:
- Low noise figure: Minimizes unwanted noise in sensitive amplifier circuits.
- High gain: Provides significant signal amplification.
- High input impedance: Reduces loading on the signal source.
- Fast switching speed: Enables high-frequency operation.
- Excellent linearity: Ensures minimal signal distortion.
- N-Channel JFET design.
Benefits:
- Improved signal quality: Low noise figure enhances the signal-to-noise ratio.
- Increased sensitivity: High gain allows for the amplification of weak signals.
- Reduced signal loss: High input impedance minimizes signal attenuation.
- Enhanced system performance: Fast switching speed enables high-speed data processing.
- Accurate signal reproduction: Excellent linearity minimizes signal distortion.
Additional Details:
The SST508 JFET typically features a small-signal voltage gain in the range of several dB to tens of dB, depending on the operating conditions and circuit design. Its gate-source cutoff voltage (VGS(off)) and drain saturation current (IDSS) are important parameters to consider when designing circuits using this JFET. The device is typically available in through-hole or surface-mount packages.
Proper biasing and impedance matching are crucial for achieving optimal performance with the SST508. Refer to the manufacturer's datasheet for detailed specifications, application notes, and recommended circuit configurations.
