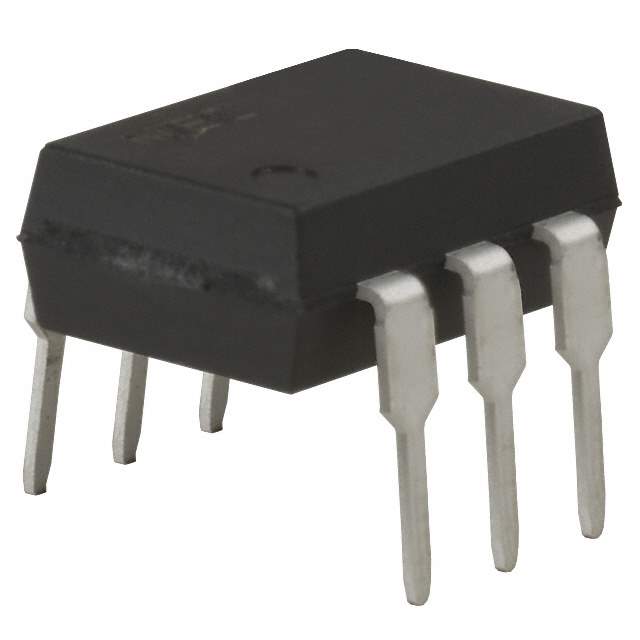

The PS7341C-1A is a solid-state relay (SSR) manufactured by California Eastern Labs (CEL). It is designed for various switching applications, offering high reliability and isolation. This SSR utilizes an LED as the input control signal and a MOSFET as the output switch, providing a fast and clean switching action.

Applications

• Industrial control systems
• Security systems
• Instrumentation
• Telecommunications equipment
• Medical equipment
• AC load control

Features

• High isolation voltage: Offers electrical isolation between the input and output circuits, enhancing safety and preventing ground loops.
• Low on-resistance: Minimizes power dissipation and voltage drop across the relay when it is in the ON state.
• Fast switching speed: Enables rapid switching operations, suitable for high-frequency applications.
• Compact size: Allows for easy integration into various circuit designs.
• Long life and high reliability: Solid-state design ensures a long operational life with minimal maintenance.
• Low input current: Requires a minimal input current to activate the relay, making it compatible with various control signals.

Benefits

• Enhanced system reliability: The solid-state design eliminates mechanical wear and tear, resulting in a more reliable system.
• Improved safety: High isolation voltage protects sensitive control circuits from high-voltage loads.
• Reduced power consumption: Low on-resistance and low input current contribute to lower overall power consumption.
• Simplified design: Compact size and ease of use simplify circuit design and integration.
• Increased efficiency: Fast switching speed enables efficient control of loads.

Additional Details

The PS7341C-1A features a normally open (1 Form A) contact configuration. It is typically available in a small outline package (SOP), suitable for surface mount technology (SMT). The control voltage range is typically between 3V to 5V, and the load voltage can range up to several hundred volts, depending on the specific model. The on-resistance is usually very low, in the order of a few ohms or less. This SSR is RoHS compliant, ensuring that it meets environmental regulations regarding hazardous substances. It is commonly used in applications requiring precise and reliable switching, such as controlling AC loads, driving motors, and interfacing with microcontrollers.
