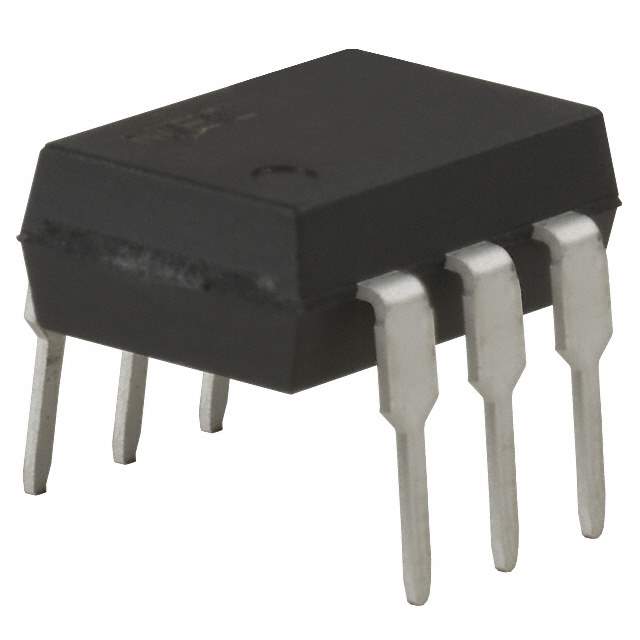

The PS7142-1B is a solid-state relay (SSR) manufactured by California Eastern Labs (CEL), which partners with Renesas. It's designed for various switching applications, providing electrical isolation between the control and load circuits. This SSR typically features a high isolation voltage, low on-resistance, and fast switching speeds. It is commonly used in industrial control systems, security systems, and telecommunications equipment. Its robust design and reliable performance make it a suitable choice for replacing electromechanical relays in many applications.

Applications

• Industrial Control Systems: Used for switching control signals in automated machinery and process control systems.
• Security Systems: Employed in security systems for controlling access and activating alarms.
• Telecommunications Equipment: Found in telecommunications equipment for switching signals and controlling devices.
• Lighting Control: Used in lighting control systems for switching lights on and off.
• Heating and Cooling Systems: Employed in HVAC systems for controlling heating and cooling elements.

Features

• High Isolation Voltage: Provides high electrical isolation between the control and load circuits.
• Low On-Resistance: Minimizes power loss and heat generation during switching.
• Fast Switching Speed: Enables rapid switching of signals and loads.
• Solid-State Design: Offers improved reliability and longevity compared to electromechanical relays.
• Compact Package: Space-saving design for easy integration into various systems.

Benefits

• Electrical Isolation: Protects control circuits from high voltages and transients.
• Reduced Power Loss: Low on-resistance minimizes power dissipation, improving energy efficiency.
• Rapid Switching: Fast switching speed enables precise control and responsive performance.
• Enhanced Reliability: Solid-state design provides long-term reliability and reduces maintenance requirements.
• Space-Efficient Design: Compact package allows for use in space-constrained applications.

Additional Details

The PS7142-1B typically features an isolation voltage of 3750 Vrms or higher. The load voltage is typically in the range of several hundred volts, and the load current can range from tens to hundreds of milliamperes, depending on the specific model. The control voltage is typically a few volts DC. The operating temperature range is generally between -40°C to +85°C. The device is available in various package configurations, including DIP and surface mount packages. It is designed to provide reliable and efficient switching in a wide range of applications.
