Same model may have multiple batches, images only for reference.

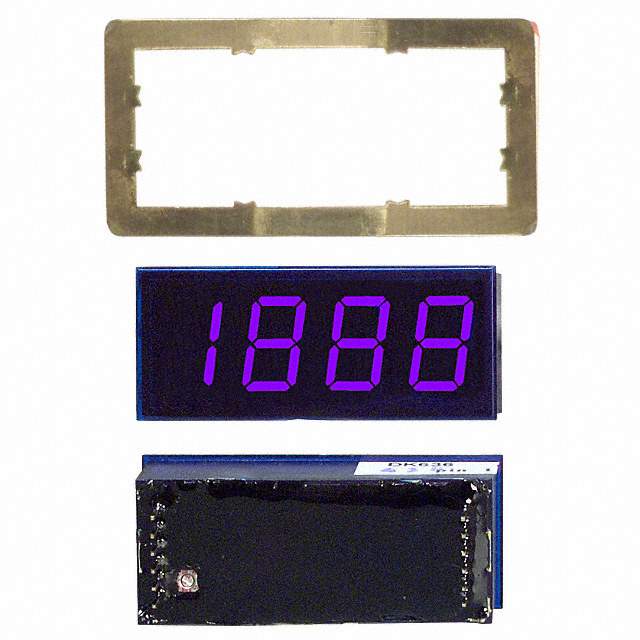

DLA-302BL Real Image
Same model may have multiple batches, images only for reference.

DLA-302BL

Part No DLA-302BL
Manufacturer C-TON Industries
Catalog Panel Meters
Description VOLTMETER 20VDC LED PANEL MOUNT
Datasheet
DLA-302BL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Industrial Controls
Manufacturer C-TON Industries
Series DK630-640
Type Voltage (Voltmeter)
Measuring Range ±20VDC
Display Type LED - Blue Characters
Number Of Characters Per Row 3.5
Display Characters - Height 0.560" (14.20mm)
Output Type Reference
Operating Supply Voltage 5VDC
Panel Cutout Dimensions Rectangular - 53.80mm x 22.30mm
Mounting Panel Mount
Termination Style PC Pin
Features Bezel Sold Separately
Operating Temperature Range 0°C ~ 50°C
Win Source Part Number 772711-DLA-302BL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DLA-302BL CAD Model

Description

The DLA-302BL is a voltage (voltmeter) from C-TON Industries' DK630-640 series.

  • Measuring Range: ±20VDC
  • Supply Voltage: 5VDC
  • Display Type: LED - Blue Characters
  • Characters per Row: 3.5
  • Character Height: 0.560" (14.20mm)
  • Panel Cutout Dimensions: Rectangular - 53.80mm x 22.30mm
  • Operating Temperature Range: 0°C to 50°C
  • Termination: PC pin
  • Bezel: Sold separately
