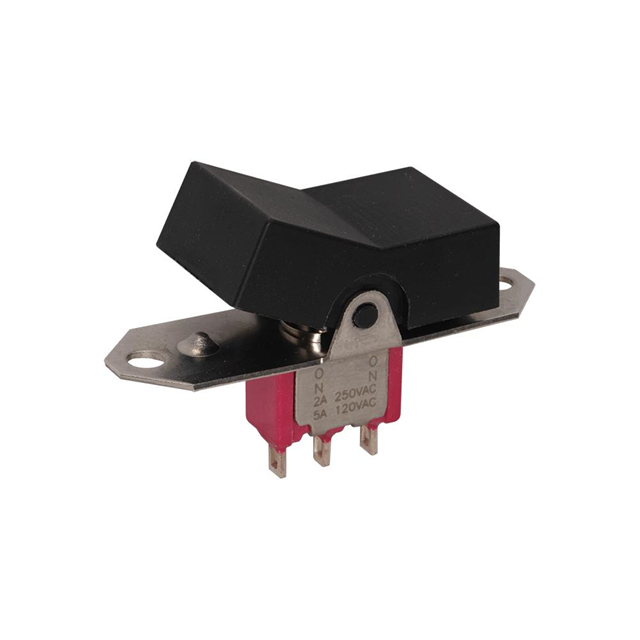

U11J11CGE22 Real Image
Same model may have multiple batches, images only for reference.

U11J11CGE22

Part No U11J11CGE22
Manufacturer C&K Components
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 5A 120V / Rocker Switch SPDT 5A (AC/DC) 120 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr C&K
Series 7000
Package Tray
Mounting Type Panel Mount, Snap-In
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Concave (Standard V)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style PC Pin
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Rectangular - 19.05mm x 10.41mm
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 100,000 Cycles
Base Product Number U11J11
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-U11J11CGE22,-U11J11CGE22
Standard Package 1
Win Source Part Number 1066226-U11J11CGE22
Ultra Librarian 3D Model Ultra Librarian U11J11CGE22 CAD Model

Description

The 1066226-U11J11CGE22 is a SPDT On-On rocker switch from C&K Components, featuring epoxy-sealed terminals and a panel cutout of 19.05mm x 10.41mm. The switch has a voltage rating of AC 120V and DC 28V, with a current rating of 5A (AC/DC). The actuator type is concave with no marking, and the switch has a mechanical life of 100,000 cycles. The operating temperature range is -30°C to 85°C, and the switch is panel mount snap-in. It is available in a tray package and is suitable for use in switches and rocker switches.
