Same model may have multiple batches, images only for reference.

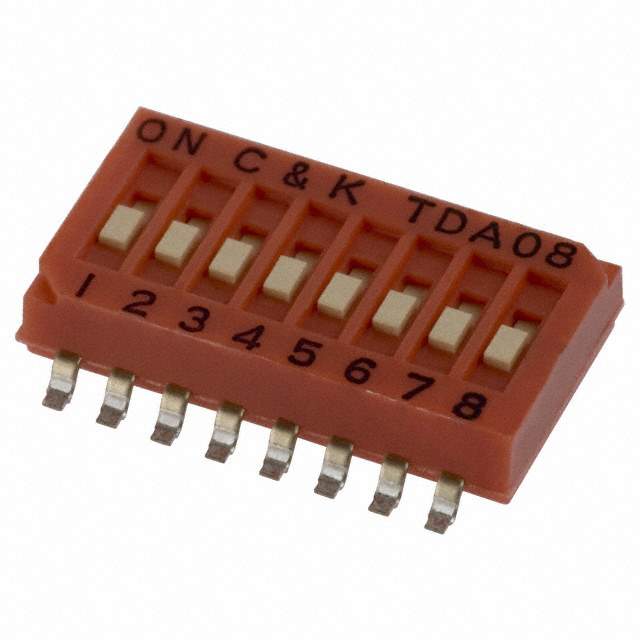

TDA08H0SK1 Real Image
Same model may have multiple batches, images only for reference.

TDA08H0SK1

Part No TDA08H0SK1
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Ultra-miniature Surface Mount Half-pitch DIP Switches
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K
Packaging Tube
Part Status Obsolete (End Of Life)
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 0.444" (11.28mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809813-TDA08H0SK1
Ultra Librarian 3D Model Ultra Librarian TDA08H0SK1 CAD Model

Description

The C&K 809813-TDA08H0SK1 is an 8-position SPST slide switch with a pitch of 0.050" (1.27mm) and termination style of gull wing. C&K

  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.091" (2.30mm)
  • Length: 0.444" (11.28mm)
  • Body Material: Polyphthalamide (PPA)
  • Washable: Yes
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • End of Life: Yes
