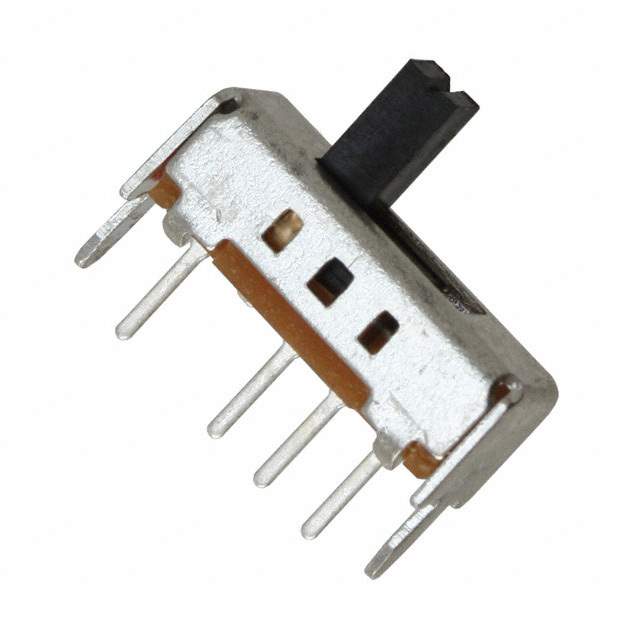

SS-13D16-VG 4 PA Real Image
Same model may have multiple batches, images only for reference.

SS-13D16-VG 4 PA

Part No SS-13D16-VG 4 PA
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SP3T 300MA 30V / Slide Switch SP3T Through Hole
Datasheet
SS-13D16-VG 4 PA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series SS, COMAX
Package Bulk
Circuit SP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.00mm
Electrical Life 10,000 Cycles
Operating Force 200/250gf
Base Product Number SS13D
Other Names SS-13D16-VG4PA,HASS0128,*SS-13D16-VG 4 PA,CKN10371,SS13D16VG4PA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1232956-SS-13D16-VG 4 PA
Ultra Librarian 3D Model Ultra Librarian SS-13D16-VG 4 PA CAD Model

Description

This electronic component is a slide switch that is part of the SS, COMAX series of Win Source products.

  • Circuit: SP3T
  • Switch Function: on-on-on
  • Actuator Type: standard
  • Actuator Length: 4.00mm
  • Switch Travel: 2.00mm
  • Electrical Life: 10,000 cycles
  • Operating Force: 200/250gf
  • Current Rating: 300mA (DC)
  • Temperature Range: -20°C to 70°C
  • Mounting: through a hole
