Same model may have multiple batches, images only for reference.

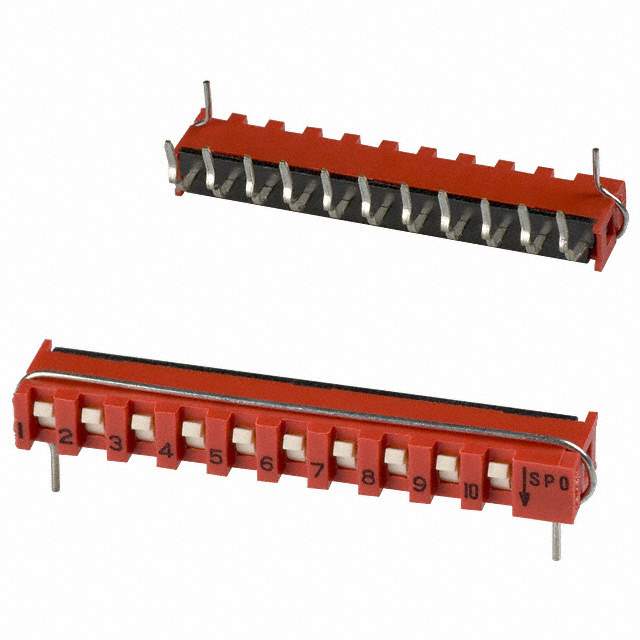

SP10AB Real Image
Same model may have multiple batches, images only for reference.

SP10AB

Part No SP10AB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 10MA 20V  /  Dip Switch SPST 10 Position Through Hole, Right Angle Slide (Standard) Actuator 10mA 20VDC
Datasheet
SP10AB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 10
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.098" (27.89mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names *SP10AB,CKN9143
Standard Package 15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233698-SP10AB
Ultra Librarian 3D Model Ultra Librarian SP10AB CAD Model

Description

The 1233698-SP10AB switch from C&K is a high-quality component that is perfect for use in a wide range of electronic devices.

  • Manufacturer: C&K
  • Positions: 10
  • Pitch: 0.100 inches
  • Termination Style: PC pin
  • Contact Finish: Gold
  • Contact Material: Beryllium copper
  • Voltage Rating: 20VDC
  • Height Above Board: 0.169 inches
  • Length: 1.098 inches
  • Standard Package: 15
  • Body Material: Polyphenylene sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Mounting Type: Through hole, right angle
  • Temperature Range: -20 to 85 degrees Celsius
