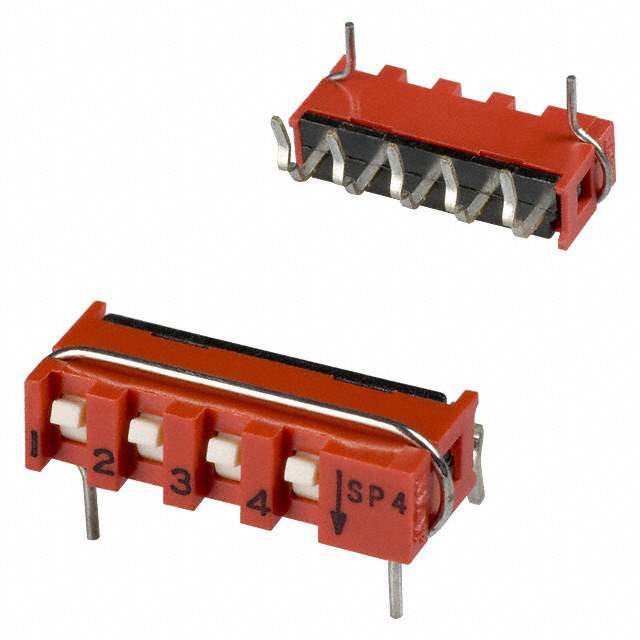

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 4
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.498" (12.65mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names *SP04A,CKN1358
Standard Package 35
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233701-SP04A
Ultra Librarian 3D Model Ultra Librarian SP04A CAD Model

Description

The C&K DIP Switch has a SPST circuit and a slide (standard) actuator type.

  • Manufacturer: C&K
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Number of Positions: 4
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Voltage Rating: 20VDC
  • Temperature Range: -20°C ~ 85°C
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
