Same model may have multiple batches, images only for reference.

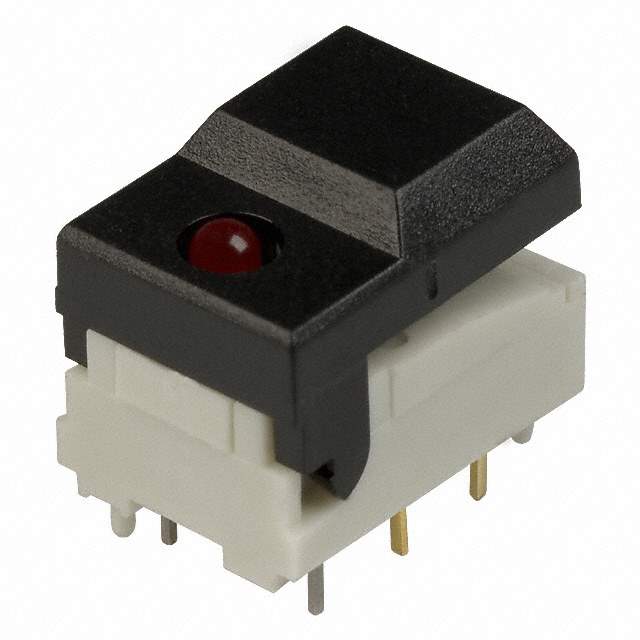

SERL BK RD 7.62 AU EE Real Image
Same model may have multiple batches, images only for reference.

SERL BK RD 7.62 AU EE

Part No SERL BK RD 7.62 AU EE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.01A 24V / Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole
Datasheet
SERL BK RD 7.62 AU EE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series DIGITAST
Package Tray
Mounting Type Through Hole
Type Keyswitch, Illuminated
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 24 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color LED, Red
Termination Style PC Pin
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 500,000 Cycles
Base Product Number SERL
Other Names *SE R L BK RD 7.62 A,*SERL BK RD 7.62 AU EE,200759,*SE R L BK RD 7.62 AU EE,SERLBKRD7.62AUEE,752010-2003,401-1114
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1233298-SERL BK RD 7.62 AU EE
Ultra Librarian 3D Model Ultra Librarian SERL BK RD 7.62 AU EE CAD Model

Description

The DIGITAST Keyswitch is a SPDT circuit, illuminated type, square button actuator switch.

  • Voltage Rating: 24 V DC
  • Current Rating: 10mA DC
  • Electrical Life: 500,000 cycles
  • Actuator Marking: No marking on the actuator
  • Actuator Color: Black
  • Illumination Type: LED with red color
  • Mechanical Life: Not mentioned
  • Mounting Type: Through-hole
  • Termination Style: PC pin
  • Operating Temperature Range: -25°C to 85°C
  • Package: Tray
  • Standard Package: 100 pieces
  • Ingress Protection: Not mentioned
  • Illumination Voltage (Nominal): Not mentioned
  • MSL Level: 1
  • REACH: REACH unaffected
  • HTSUS: 8536.50.9033
  • Manufacturer: C&K
