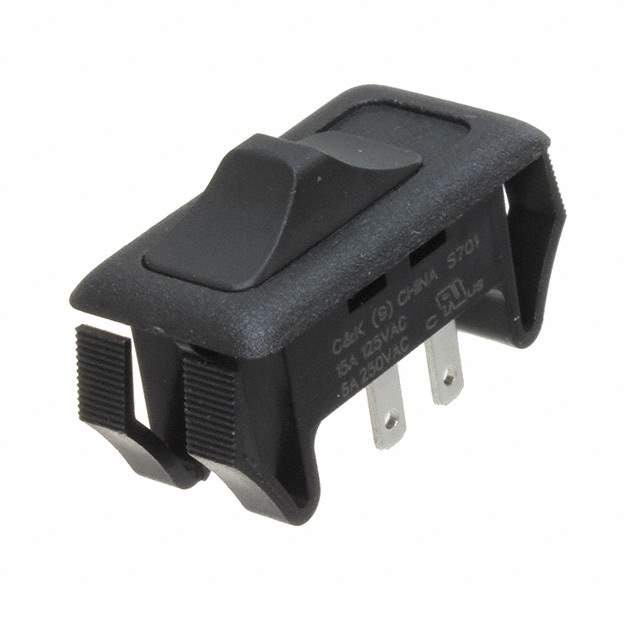

S701C21S207Q Real Image
Same model may have multiple batches, images only for reference.

S701C21S207Q

Part No S701C21S207Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPST 15A 125V / Slide Switch SPST Panel Mount, Snap-In
Datasheet
S701C21S207Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit SPST
Contact Timing Not Specified
Switch Function On-Off
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Snap on Cap
Actuator Length 5.08mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount, Snap-In
Termination Style Quick Connect - 0.110" (2.8mm)
Features Black Actuator
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S701C21
Other Names CKN11912,2266-S701C21S207Q,S701C21S207Q,-S701C21S207Q
Standard Package 72
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233151-S701C21S207Q
Ultra Librarian 3D Model Ultra Librarian S701C21S207Q CAD Model

Description

The S series slide switch from C&K is a SPST circuit snap-on cap actuator switch that operates on an on-off switch function with a black actuator.

  • Circuit: SPST
  • Switch Function: On-Off
  • Actuator Color: Black
  • Voltage Rating: 125V AC
  • Current Rating: 15A AC
  • Termination: Quick Connect of 0.110" (2.8mm)
  • Contact Finish: Silver
  • Contact Material: Copper
  • Actuator Material: Polyamide (PA66), Nylon 6/6
  • Actuator Length: 5.08mm
  • Switch Travel: 4.57mm
  • Electrical Life: 10,000 cycles
  • Operating Temperature: -30°C ~ 65°C
  • Mounting Type: Panel Mounted Snap-In
  • Package: Bulk
  • Standard Package: 72
