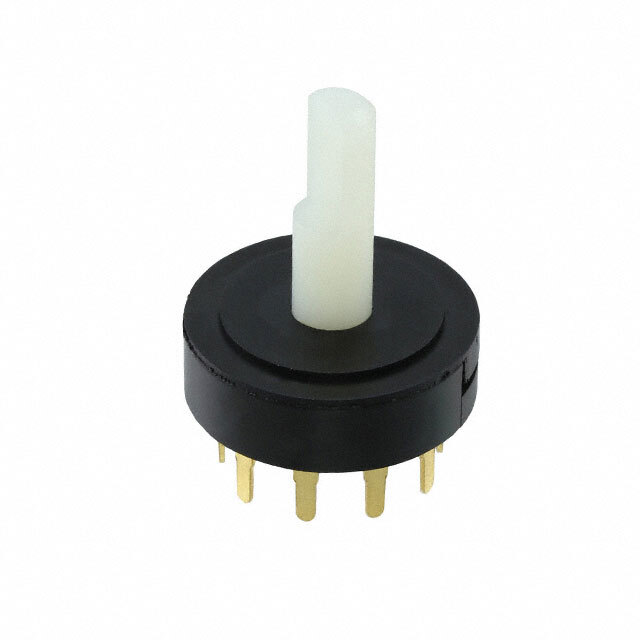

R10307RR02Q C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

R10307RR02Q

Part No R10307RR02Q
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 3POS 5A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Positions 3
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP3T, Adjacent Contact
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 5A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 12.70mm
Angle of Throw 36°
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Depth Behind Panel 10.29mm
Package Bag
Supply and Demand Status Shortage
Win Source Part Number 1559553-R10307RR02Q
Ultra Librarian 3D Model Ultra Librarian R10307RR02Q CAD Model

Description

N
