Same model may have multiple batches, images only for reference.

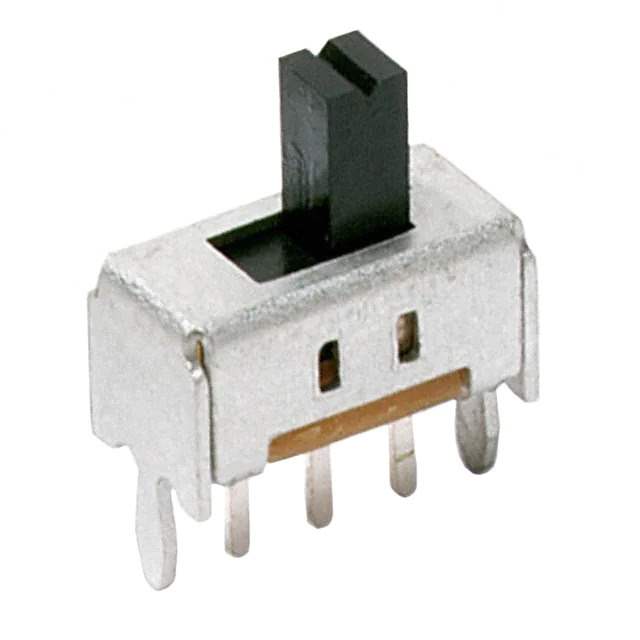

OS102011MS2QN1 Real Image
Same model may have multiple batches, images only for reference.

OS102011MS2QN1

Part No OS102011MS2QN1
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPDT 100MA 12V / Slide Switch SPDT Through Hole
Datasheet
OS102011MS2QN1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K Components
Series OS
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number OS102011
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 849724-OS102011MS2QN1
Ultra Librarian 3D Model Ultra Librarian OS102011MS2QN1 CAD Model

Description

The OS102011MS2QN1 slide switch from C&K Components is a versatile and reliable component for various electronic applications. It is part of the OS series, known for its high-quality construction and durability.

  • Series: OS
  • Termination Style: PC Pin
  • Terminals: Epoxy Sealed
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Voltage Rating: 12V DC
  • Current Rating: 100mA
  • Package: Bulk
  • Standard Package: 300 pieces
  • Circuit Configuration: SPDT
  • Contact Timing: Non-Shorting
  • Mounting Type: Through-Hole
  • Temperature Range: -30°C to 70°C
  • Status: Active
