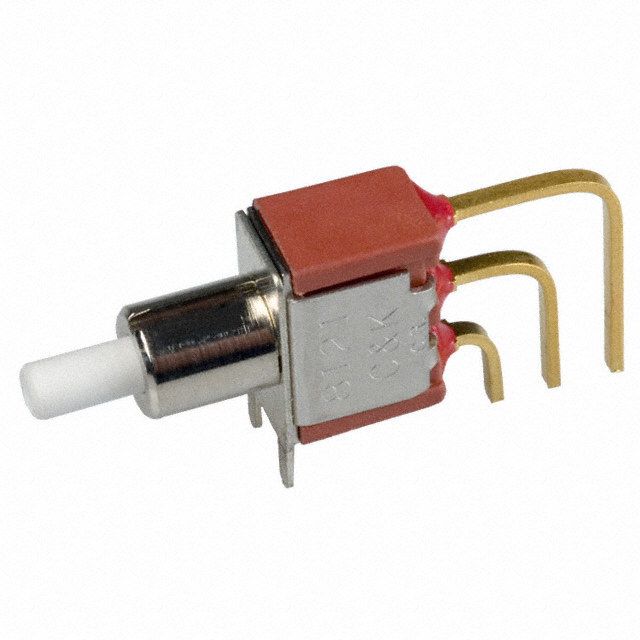

Same model may have multiple batches, images only for reference.
8225SD9AV2BE C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

8225SD9AV2BE

Part No 8225SD9AV2BE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH DPDT 0.4VA 20V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole, Right Angle, Vertical
Type Standard
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style PC Pin
Features Tactile Feedback
Temperature Range - Operating -30°C ~ 75°C
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1556192-8225SD9AV2BE
Ultra Librarian 3D Model Ultra Librarian 8225SD9AV2BE CAD Model
