Same model may have multiple batches, images only for reference.

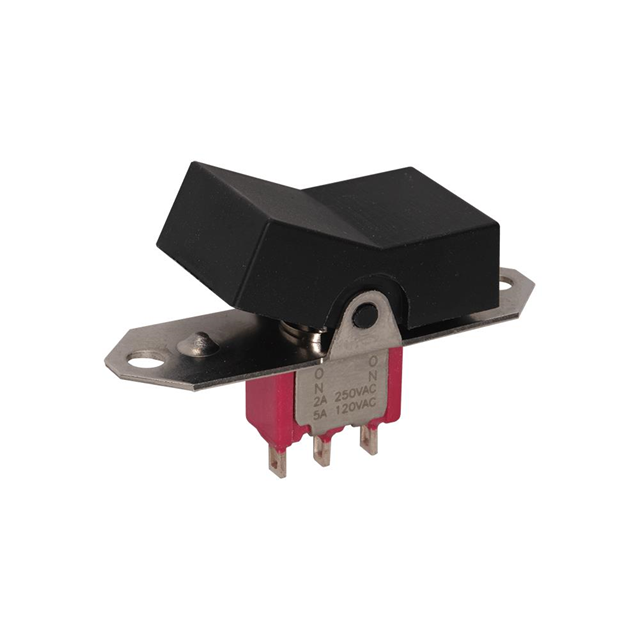

7405J19ZQE12 Real Image
Same model may have multiple batches, images only for reference.

7405J19ZQE12

Part No 7405J19ZQE12
Manufacturer C&K Components
Catalog Rocker Switches
Description SWITCH ROCKER 4PDT 5A 120V / Rocker Switch 4PDT 5A (AC/DC) 120 V Panel Mount, Snap-In
Datasheet
7405J19ZQE12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr C&K
Series 7000
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit 4PDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Concave (Curved)
Color - Actuator/Cap White
Actuator Marking No Marking
Termination Style Solder Lug
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Rectangular - 38.74mm x 16.46mm
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 40,000 Cycles
Base Product Number 7405J
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -7405J19ZQE12,2266-7405J19ZQE12
Standard Package 1
Win Source Part Number 1215762-7405J19ZQE12
Ultra Librarian 3D Model Ultra Librarian 7405J19ZQE12 CAD Model

Description

This electronic component is a 4PDT rocker switch from the 7000 series manufactured by C&K.

  • Win Source Part Number: 1215762-7405J19ZQE12
  • Termination Style: Solder Lug
  • Terminals: Epoxy Sealed
  • Package: Bulk
  • Ingress Protection: None
  • Voltage Rating (AC): 120 V
  • Voltage Rating (DC): 28 V
  • Panel Cutout Dimensions: Rectangular - 38.74mm x 16.46mm
  • Switch Function: Mom-Off-Mom
  • Actuator Type: Concave (curved)
  • Electrical Life: 40,000 cycles
  • Illumination Voltage/Type: None
  • Mounting Type: Panel Mount, Snap-In
  • Operating Temperature: -30°C to 85°C
  • REACH Affected: Yes
