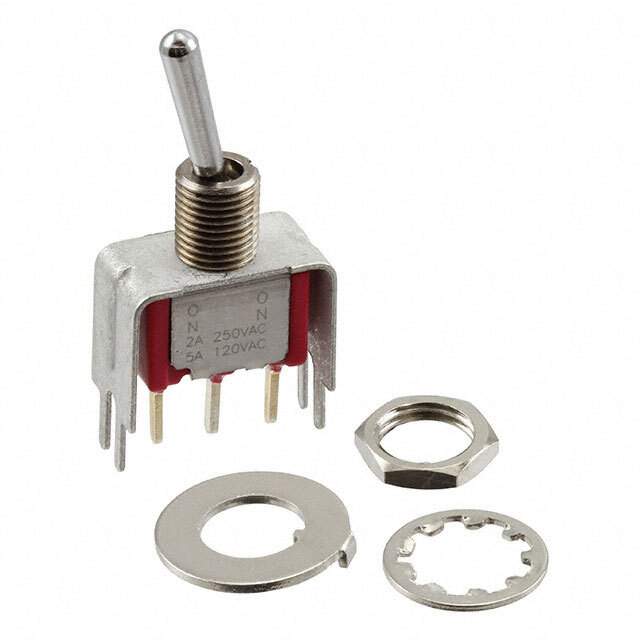

7101SDV3QE Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 12.45mm
Illumination Non-Illuminated
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7101SD
Standard Package 80
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1341468-7101SDV3QE
Ultra Librarian 3D Model Ultra Librarian 7101SDV3QE CAD Model

Description

The 7101SDV3QE is a SPDT toggle switch from C&K.

  • Product Name: 7101SDV3QE
  • Manufacturer: C&K
  • Switch Type: SPDT Toggle Switch
  • Actuator Type: Standard Round
  • Actuator Length: 12.45mm
  • Contact Rating: 5A (AC/DC)
  • Voltage Rating: 120V (AC) / 28V (DC)
  • Panel Cutout Dimension: Circular-6.35mm Dia
  • Mounting Type: Through-Hole
  • Temperature Range: -30°C to 85°C
