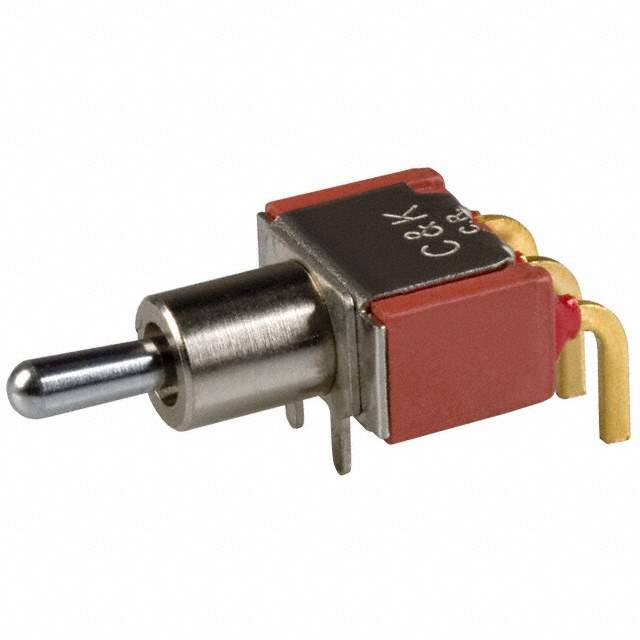

7101MD9ABE Real Image
Same model may have multiple batches, images only for reference.

7101MD9ABE

Part No 7101MD9ABE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V / Toggle Switch SPDT Through Hole, Right Angle
Datasheet
7101MD9ABE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Manufacturer C&K
Packaging Tray
Mounting Through Hole, Right Angle
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 6.86mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7101
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number CKN1045,*7101MD9ABE,2266-7101MD9ABE
Standard Package 80
Win Source Part Number 1323829-7101MD9ABE
Ultra Librarian 3D Model Ultra Librarian 7101MD9ABE CAD Model

Description

The C&K toggle switch is a high-quality switch with epoxy-sealed terminals.

  • Circuit: Single-Pole Double-Throw (SPDT)
  • Function: On-On
  • Actuator Material: Brass and Chrome Plated
  • Actuator Type: Standard Round
  • Voltage Rating: 20V (AC and DC)
  • Mounting: Through Hole
  • Current Rating: 0.4VA (AC/DC)
  • Electrical Life: 100,000 cycles
  • Temperature Range: -30°C and 85°C
  • ROHS: ROHS3 Compliant
  • ECCN: EAR99
  • Packaging: Tray
  • Standard Package: 80
