Products specifications Report Issue?

Win Source Part Number Cross

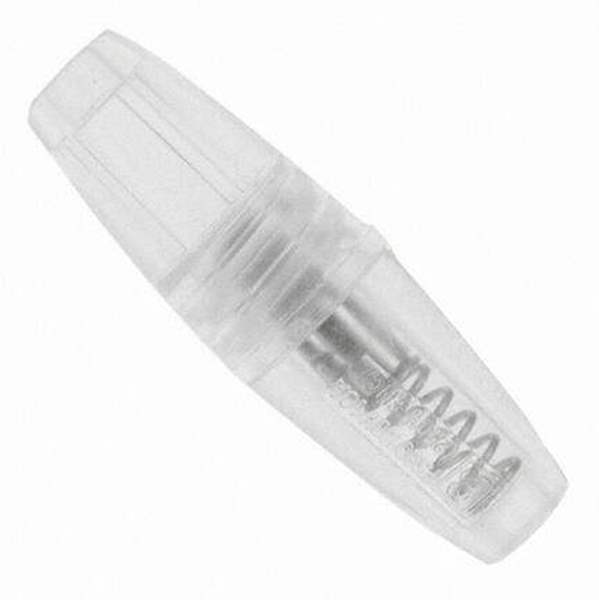

Manufacturer Bulgin
Category Circuit Protection Fuseholders
Packaging  Box
Part Status Active
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Fuse Type Cartridge
Fuseholder Type Holder
Termination Style Wire Leads
Contact Material Brass
Contact Finish Nickel
Win Source Part Number WS1305796-FX0380
Ultra Librarian 3D Model Ultra Librarian FX0380 CAD Model

Description

Bulgin FX0380 is a fuseholder component used in equipment that requires accessible, serviceable overcurrent protection in panel, power entry, or control-circuit designs. Engineers typically evaluate fuseholders like FX0380 for industrial controls, instrumentation, power distribution assemblies, telecom equipment, and other systems where fuse replacement, safety, and maintenance workflow matter. As a Bulgin part, it is positioned for designers seeking a recognized brand in electromechanical and circuit protection hardware rather than an unspecified generic alternative. Because exact technical specifications were not provided here, design teams should confirm fuse format, mounting style, current rating, voltage rating, and environmental suitability through the official datasheet before release. Lifecycle status for FX0380 is currently information not available, so procurement teams should verify current production status with Bulgin or authorized distribution before committing it into new programs. RoHS compliance information is also not available in the provided data and should be confirmed using manufacturer documentation or distributor compliance records.
