Same model may have multiple batches, images only for reference.

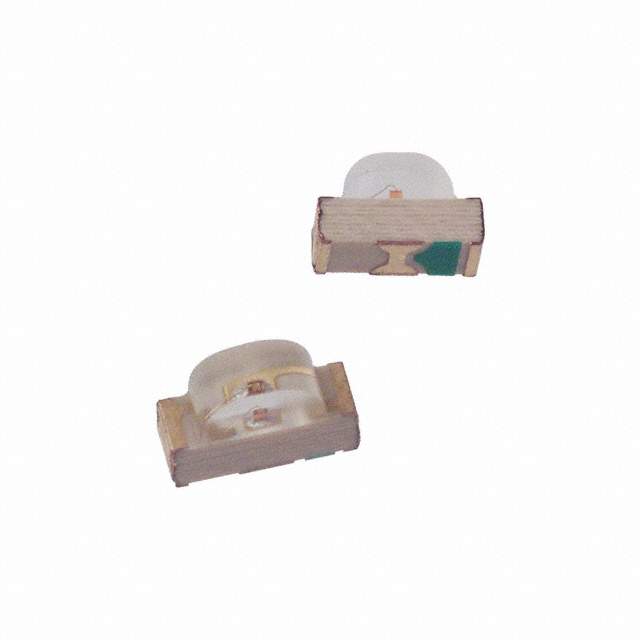

HSMG-C660 Real Image
Same model may have multiple batches, images only for reference.

HSMG-C660

Part No HSMG-C660
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description Right Angle Surface Mount Chip LEDs | LED GREEN DIFFUSED CHIP SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Cut Tape (CT)
Status Obsolete
Color Green
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 9mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) 2.2V
Current - Test 20mA
Viewing Angle 155°
Mounting Style SMT, Right Angle
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Manufacturer Package 2-SMD, No Lead
Supplier Device Package Chip LED
Parts Dimension 3.00mm L x 2.00mm W
Height (Maximum) 1.00mm
Family Part Number HSMG-C660
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 1181846-HSMG-C660
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HSMG-C660 CAD Model

Description

The HSMG-C660 is a green-colored chip LED with a rectangular lens style and a domed top manufactured by Broadcom Limited.

  • Lens Size: 2.00mm x 1.00mm
  • Viewing Angle: 155°
  • Lens Color: White
  • Lens Transparency: Diffused
  • Millicandela Rating: 9mcd
  • Wavelength: 572nm (dominant) and 570nm (peak)
  • Current Test: 20mA
  • Forward Voltage (Vf): 2.2V
  • Package Size: 2-SMD, No Lead
  • Device Status: Obsolete
  • Supply and Demand: Limited
