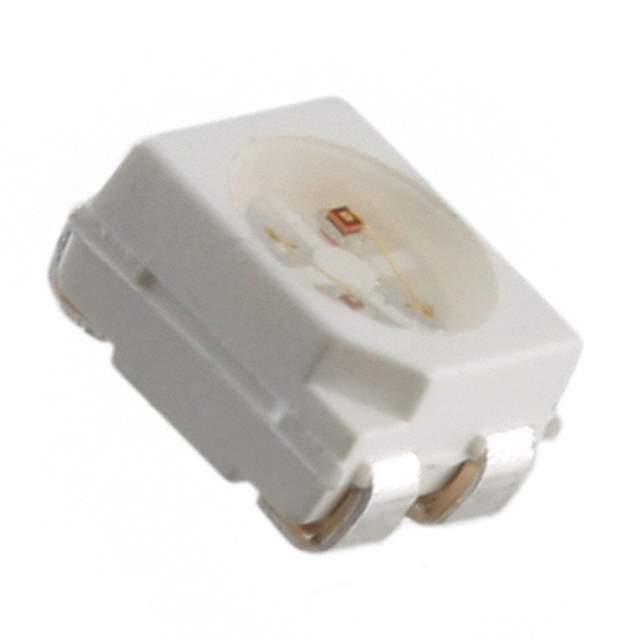

HSMF-A203-A00J1 Real Image
Same model may have multiple batches, images only for reference.

HSMF-A203-A00J1

Part No HSMF-A203-A00J1
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR 4PLCC SMD / Surface Mount LED Indicators, PLCC-4 SMT LEDs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Broadcom Limited
Packaging Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 8mcd Green, 16mcd Red
Lens Style Round with Flat Top
Lens Size 2.20mm Dia
Voltage - Forward (Vf) (Typ) 2.2V Green, 2.2V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 120°
Mounting Style SMD
Wavelength - Dominant 560nm Green, 626nm Red
Wavelength - Peak 558nm Green, 635nm Red
Manufacturer Package 4-PLCC
Supplier Device Package 4-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Maximum) 2.10mm
Part Number Series HSMF-A2*
Manufacturer Pack Quantity 2,000
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810046-HSMF-A203-A00J1
Ultra Librarian 3D Model Ultra Librarian HSMF-A203-A00J1 CAD Model

Description

The Broadcom Limited HSMF-A203-A00J1 is a surface-mount device with independent green and red LEDs.

  • Viewing Angle: 120°
  • Millicandela (Green): 8mcd
  • Millicandela (Red): 16mcd
  • Voltage Forward: 2.2V (both colors)
  • Current Test: 20mA
  • Wavelength Dominant (Green): 560nm
  • Wavelength Dominant (Red): 626nm
  • Wavelength Peak (Green): 558nm
  • Wavelength Peak (Red): 635nm
  • Package: 4-PLCC
  • Lens Style: Round with flat top
  • Lens Size: 2.20mm diameter
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 2A (4 weeks)
  • Series: HSMF-A2*
