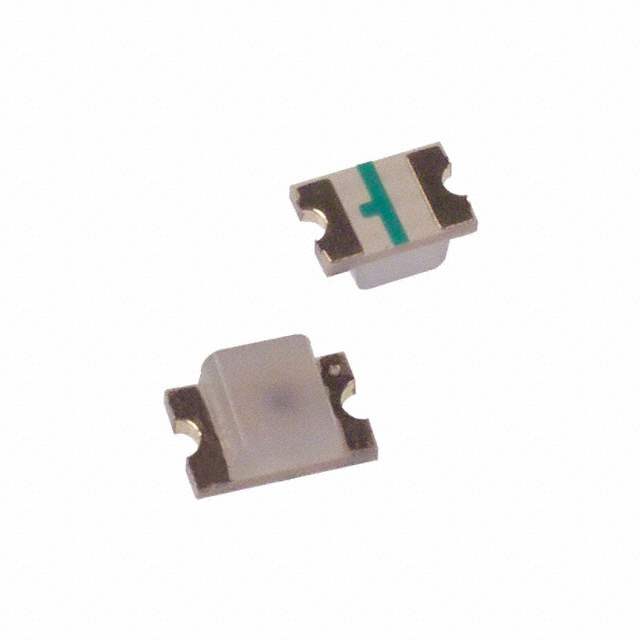

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Amber
Lens Color White
Lens Transparency Diffused
Millicandela Rating 90mcd
Lens Style/Size Rectangle with Flat Top, 1.40mm x 1.25mm
Forward Voltage 1.9V
Current - Test 20mA
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 592nm
Wavelength - Peak 595nm
Case / Package Chip LED
Height (Max) 0.80mm
Win Source Part Number 137074-HSMA-C170
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian HSMA-C170 CAD Model

Description

The Broadcom Limited 137074-HSMA-C170 is a Chip LED with an amber color and SMD (SMT) mounting. The device has a viewing angle of 170° and a millicandela rating of 90mcd. The device has a wavelength-dominant of 592nm and a wavelength-peak of 595nm. The device is packaged in a reel - TR package and has a medium popularity. The supply and demand status of the device is balanced with 4k pcs quantity per package.
