HSCH-5310 Broadcom Limited

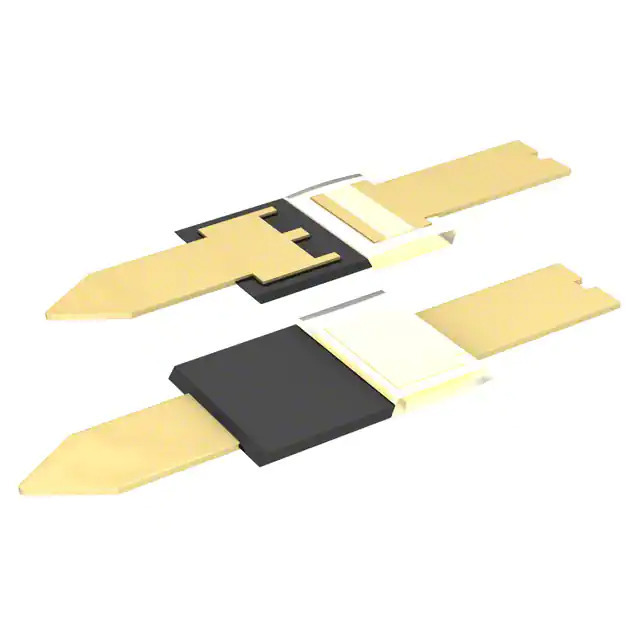

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Broadcom Limited
Series HSCH-53xx
Package Bulk
Product Status Obsolete
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 4V
Capacitance @ Vr, F 0.1pF @ 0V, 1MHz
Resistance @ If, F 20Ohm @ 5mA, 1MHz
Power Dissipation (Max) 150 mW
Temperature Range - Operating -65°C ~ 175°C
Package / Case 2-SMD, Flat Lead
Supplier Device Package 07
Base Product Number HSCH
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0060
Win Source Part Number 1357337-HSCH-5310
Ultra Librarian 3D Model Ultra Librarian HSCH-5310 CAD Model

Description

The Broadcom Limited 1193950 is a high-quality RF diode that belongs to the HSCH-53xx series. It offers reliable performance in a wide temperature range from -65°C to 175°C, making it suitable for demanding applications.

  • Series: HSCH-53xx
  • Temperature Range: -65°C to 175°C
  • Configuration: Schottky Single
  • Maximum Peak Reverse Voltage: 4V
  • Forward Current: 5mA
  • Package: 2-SMD Flat Lead
  • Product Status: Obsolete
